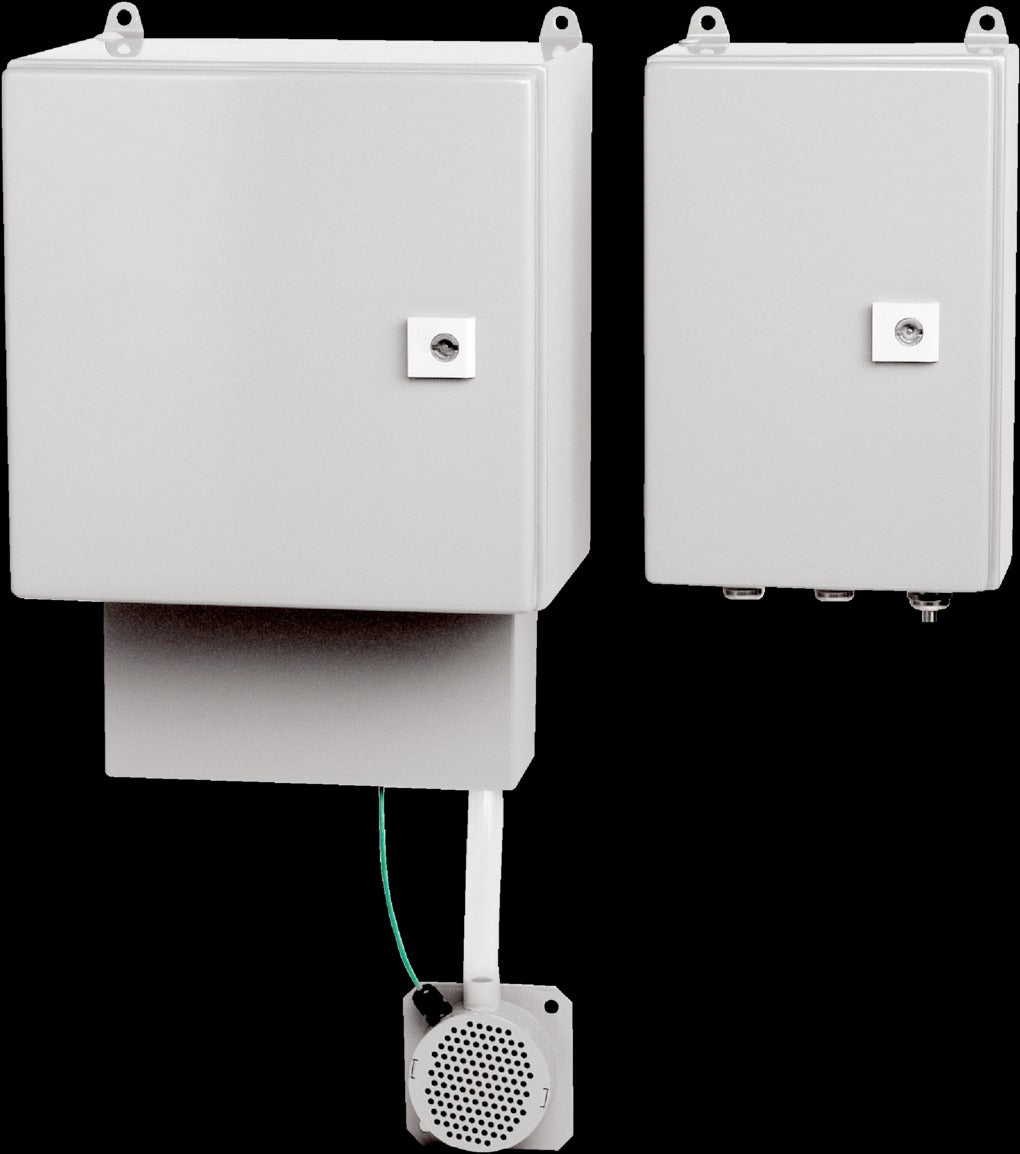

SICK Smoke detectors: SMOTEC450 System SMOTEC450

SAS00006568

Description In-situ gas analyzer for emission monitoring and process measurement
Measured values NO, NO2, NH3, SO2, O2, Visibility (K-value)
Performance-tested measurands NO, SO2
Maximum number of measurands 4 (plus process temperature and pressure)
Measurement principles Differential optical absorption spectroscopy (DOAS), Diode laser spectroscopy (TDLS), Scattered light forward
Spectral range 640 mm ... 660 mm
Laser, protection class Class 2, power < 1 mW
Gas flow rate 30 l/min ... 35 l/min
Electrical safety CE
Enclosure rating IP66
Dimensions (W x H x D) Measuring unit 300 mm x 340 mm x 215 mm (for details see dimensional drawings)
Weight 12 kg
Energy supply Voltage: 90 V AC ... 250 V AC, Frequency: 50 Hz / 60 Hz, Power consumption: ≤ 35 VA
