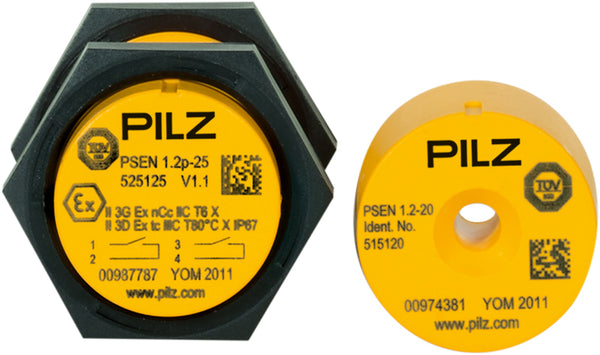

PILZ PSEN 1.2p-25/PSEN 1.2-20/8mm/ATEX/ix1

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
ATEX certificate number SEV 12 ATEX 0121 X
ATEX category gas (To be defined)
ATEX category dust II 3D Ex mc tc IIIC T80Ā°C
ATEX application area X X: -10Ā°C ā‰¤ ta ā‰¤ +55Ā°C
Ambient temperature -10 - 55 Ā°C
Max. ambient temp. at Hmax (To be defined)
Max. ambient temp. at 2000 m +55 Ā°C
Climatic suitability standard IEC 60068-2-30
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree clear.&creep. 3
Mechanical Data
Type 1 actuator PSEN 1.2-20
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 4-pin male
Housing material upper part PBT
Height dimension 30 mm
Width dimension 30 mm
Depth dimension 42.7 mm
Net weight 36 g
Gross weight 47 g
