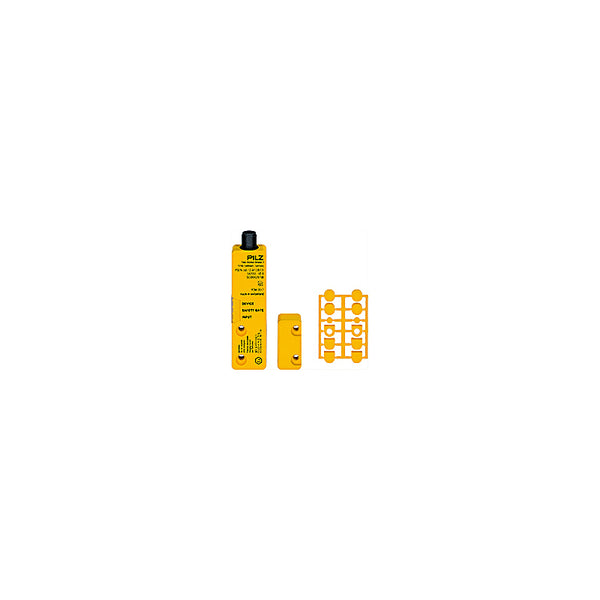

PILZ PSEN cs5.13 M12/8/PSEN cs5.13 M12 EX 1u

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W
Number of inputs 2
DC voltage at input 24 V DC
Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

ATEX certificate number SEV 16 ATEX 0162 X
ATEX category gas II 3G Ex ec mc IIC T6 Gc
ATEX category dust II 3D Ex mc tc IIIC T80 Ā°C Dc
ATEX application area X: -25Ā°C ā‰¤ ta ā‰¤ +55Ā°C
Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 55 Ā°C
Max. ambient temp. at Hmax +55 Ā°C
Max. ambient temp. at 2000 m +55 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

Switching Distances

Change op. dist. temp.change +-0.02mm/Ā°C

Mechanical Data

Type 1 actuator PSEN cs5.13 M12 ATEX
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Product material PBT, PA+GF, Polycarbonate
Height dimension 26.4 mm
Width dimension 101.6 mm
Depth dimension 19 mm
Net weight 83 g
Gross weight 100 g

Transponder

Operating frequency 122 kHz - 128 kHz
