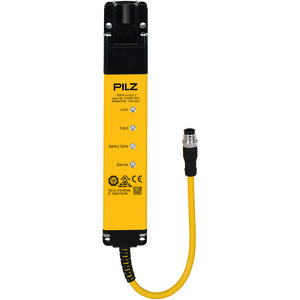

PILZ PSEN ml sa 2.2 switch

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W
Number of inputs 4
DC voltage at input 24 V DC
Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-13

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature 0 - 60 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
EMC to standard EN 55011: Class A
EN 60947-5-3
EN 61326-3-1
Vibration to standard EN 60068-2-6
Acc. shock to standard 1 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing UL enclosure type: Type 1

Times

Pulse length lock/unlock req. 350 - 400 ms

Mechanical Data

Bend radius (when laying) K1 5 x Ƙ
Escape release available No
Type 1 actuator PSEN ml 2.1
Connection type M12, 12-pin male
Cable lines LiYY 12 x 0.25 mmĀ²
Product material Zn, Aluminium, Galvanised steel, Stainless steel, Plastic
Height dimension 217.2 mm
Width dimension 40 mm
Depth dimension 40 mm
Net weight 950 g
Gross weight 1300 g

Transponder

Operating frequency 122 kHz - 128 kHz
