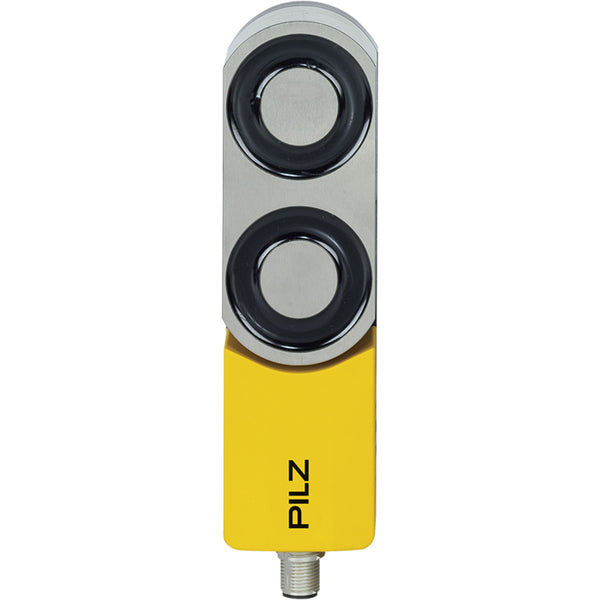

PILZ PSEN sl-1.0p 1.1 VA 1switch

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 7.2 W

Inputs

Number of inputs 3
DC voltage at input 24 V DC

Semiconductor Outputs

Number of OSSD outputs 2
Number of sig. outputs 1
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 55 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
EMC to standard ... EN 55011: Class A
EN 60947-5-3
EN 62061
Vibration to standard ... EN 60947-5-2
Acc. shock to standard1 30g
Acc. shock to standard2
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

Mechanical Data

Holding force magnet on 1000 N
Max. vertical offset 5 mm
Max. angular offset 2.5 deg
Type 1 actuator PSEN sl-1.0 VA
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Cable lines LiYY 8 x 0.25 mmĀ²
Housing material upper part PBT
Material of base plate Stainless steel 1.4301
Height dimension 172 mm
Width dimension 45 mm
Depth dimension 44 mm
Net weight 1470 g
Gross weight 1540 g

Transponder

Operating frequency 122 kHz - 128 kHz
