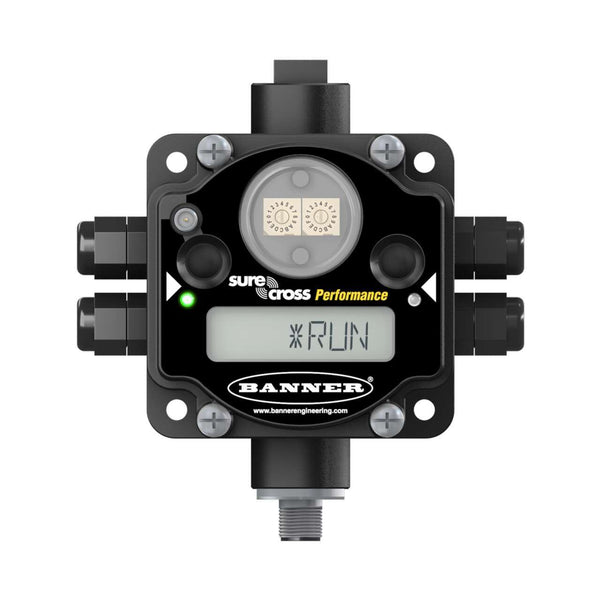

BANNER DX80DR9M-H1MultiHop Modbus I/O Data Radios

PAP00012425

Power: Flex Power
IP Rating: IP67
NEMA / UL Type Rating: NEMA 4X
Housing Style: Enclosed Terminals
Device Type: Multihop Data Radio
Input Output: Analog & Discrete
Analog Inputs: Yes
Discrete Inputs: Yes
Discrete Outputs: Yes
Input Details: 4 Discrete, 2 0-20 mA, 1 Thermistor, 1 Counter
Output Details: 2 NMOS Discrete
Power Supply: 10-30 V dc or 3.6-5.5 V dc low power option
Max Temp Operating Conditions (°C): 80
Min Temp Operating Conditions (°C): -20
LCD Display: Yes
Max Operating Temperature (°C): 80
Ships With Battery: No
Min Operating Temperature (°C): -20
Point-to-Multipoint Topology: Yes
Point-to-Point Topology: Yes
Star Topology: Yes
Tree Topology: Yes
Application: Object Counting: Yes
Application: Temperature Input: Yes
Modbus RTU: Yes
RS-485: Yes
Wireless: Yes
Wireless Radio Frequency: 900 MHz
Cert: Australia/New Zealand: Yes
Cert: Canada: Yes
Cert: Thailand: Yes
