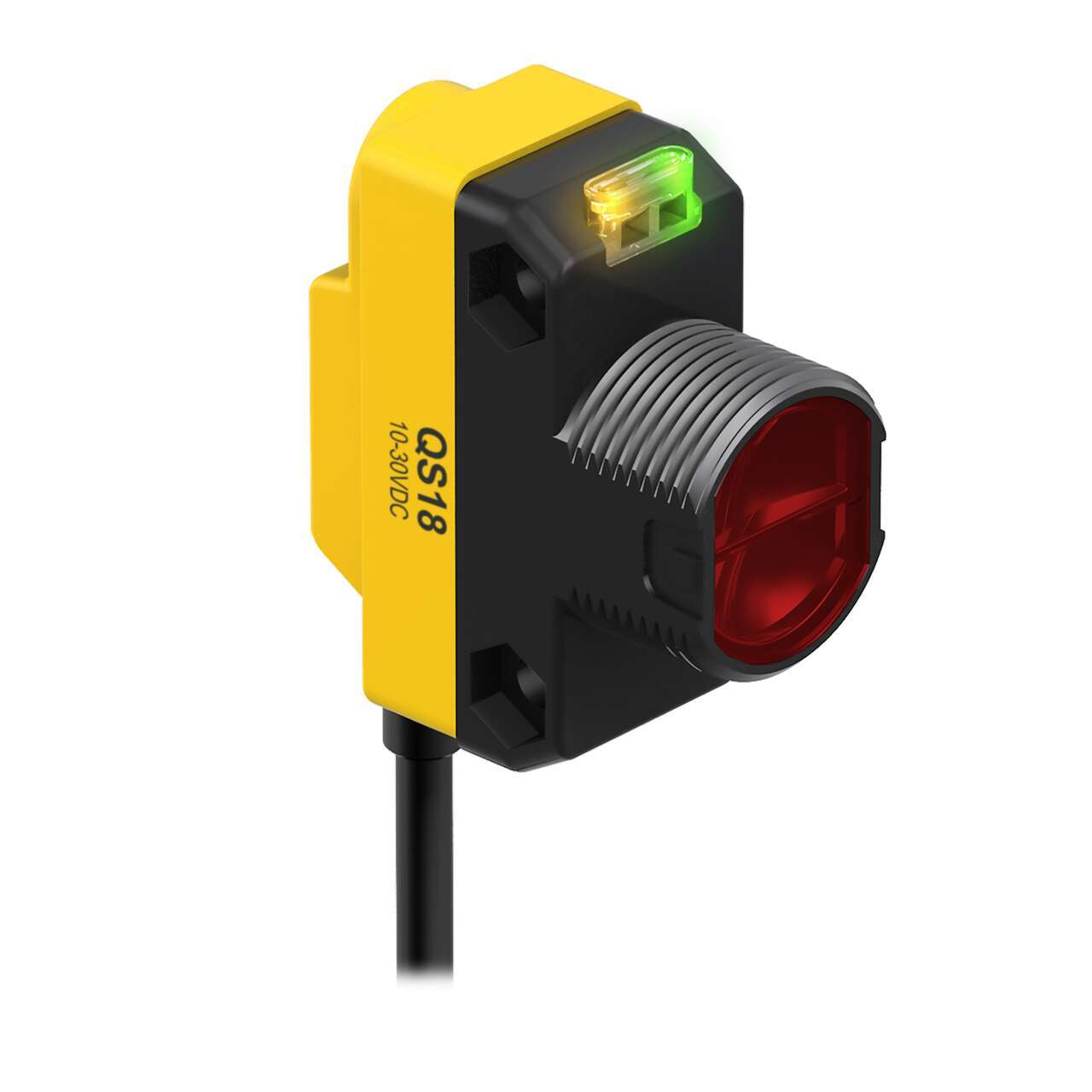

BANNER QS18VN6FF150Q5 Series All Purpose Photoelectric Sensor

Write a review
Rs. 0.00

IP Rating: IP67
NEMA / UL Type Rating: NEMA 4X
Cable Length (m): 0.15
Sensing Beam: Visible Red LED
Power: DC
Sensing Mode (General): Proximity
Sensing Mode (Detailed): Background Suppression (Fixed)
Housing Style: Rectangular w/M18 Mount
Primary Housing Material: ABS
Small Visible Spot: LED
Input Output: Discrete
Max Sensing Distance (mm): 150
Outputs: NPN
Power Supply/Supply Voltage: 10-30 V dc
Connection: Pigtail QD
Quick Disconnect Type: M12
Min Operating Temperature (Ā°C): -20
Operation: Light/Dark Operate
Max Operating Temperature (Ā°C): 70
Output Response Time (ms): 0.85
Sensing Beam Wavelength: 632
Delay at Power-up (ms): 100
Repeatability (Āµs): 160
Number of Pins: 4
Max Operating Relative Humidity [%]: 95% @ 50Ā°C
Lens Material: Acrylic
Adjustments: N/A
Barrel Diameter (mm): 18
Indicator: LEDs
Feature: Audible: No
Feature: Quick Disconnect: Yes
EPLAN Status: Published
EPLAN Original Sent Date: 06/06/2024
