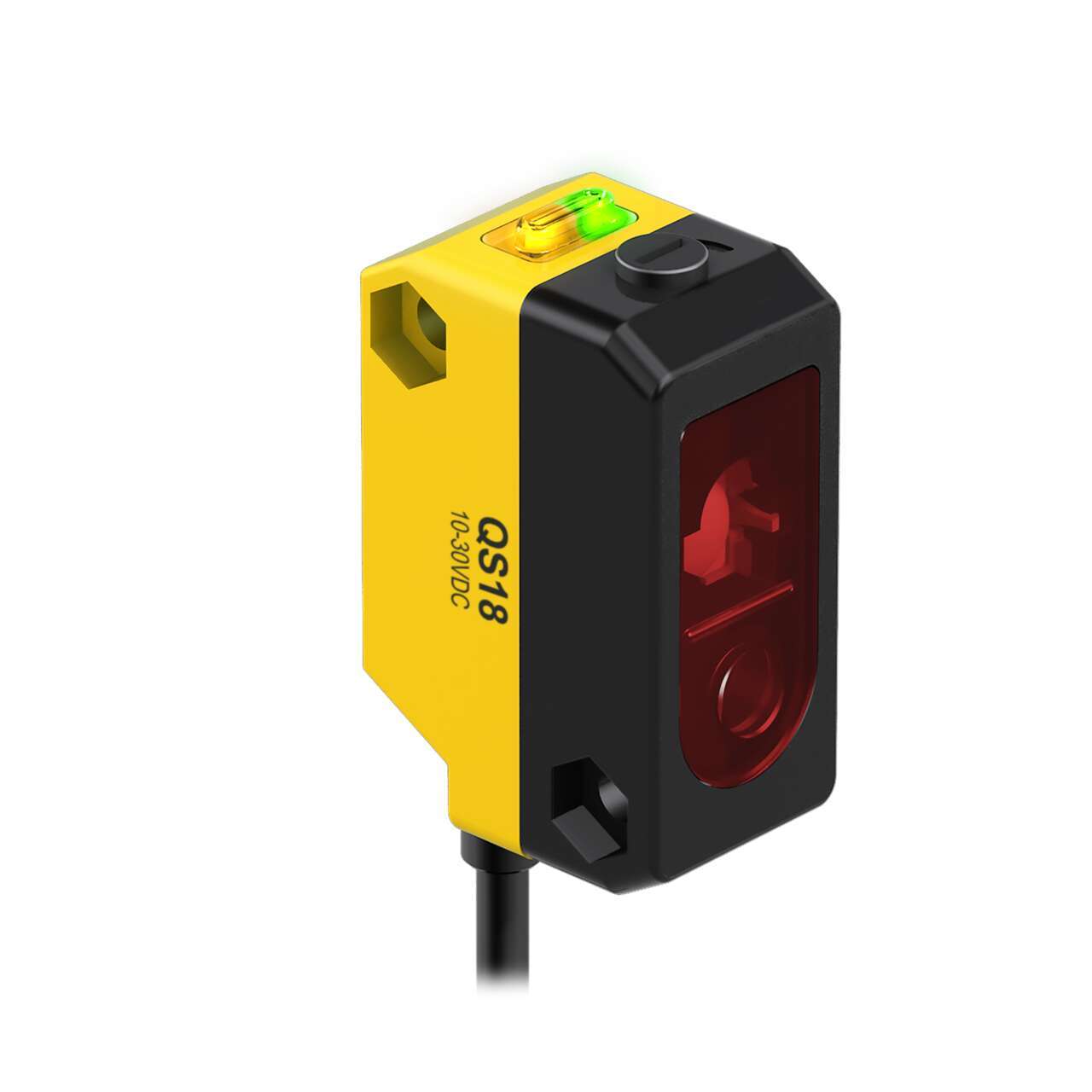

BANNER QS18VN6LAF250Q5 Series All Purpose Photoelectric Sensor

Write a review
Rs. 0.00

IP Rating: IP67
NEMA / UL Type Rating: NEMA 4X
Cable Length (m): 0.15
Sensing Beam: Visible Red Laser
Power: DC
Sensing Mode (General): Proximity
Sensing Mode (Detailed): Background Suppression (Adjustable)
Housing Style: Rectangular
Primary Housing Material: ABS
Laser Classification: Class 2
Small Visible Spot: Laser
Input Output: Discrete
Max Sensing Distance (mm): 250
Outputs: NPN
Power Supply/Supply Voltage: 10-30 V dc
Connection: Pigtail QD
Quick Disconnect Type: M12
Min Op. Temp. (Ā°C): -10
Operation: Light/Dark Operate
Max Op. Temp. (Ā°C): 50
Output response time (ms): 0.7
Sensing Beam Wavelength: 658
Delay at Power-up (ms): 200
Repeatability (Āµs): 130
Number of Pins: 4
Max Op. Relative Humidity [%]: 95% @ 50Ā°C
Lens Material: Acrylic
Adjustments: Mechanical Screw
Indicator: LEDs
Feature: Audible: No
Feature: Quick Disconnect: Yes
EPLAN Status: Published
EPLAN Original Sent Date: 01/29/2024
