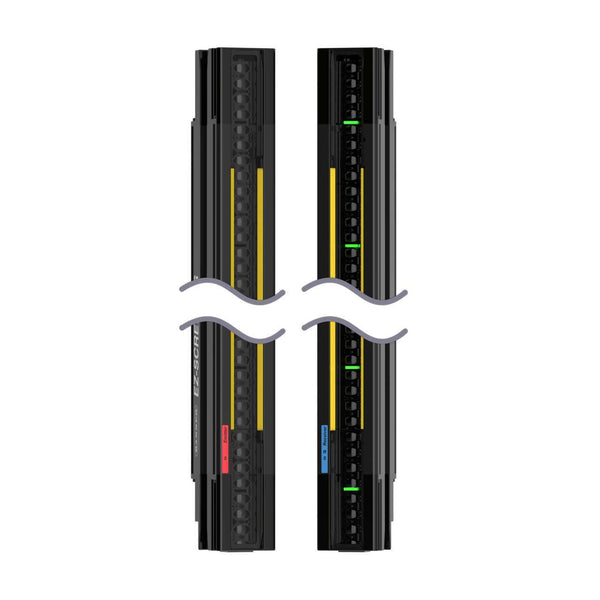

BANNER SLLCP14-630P55Safety Light Curtains

PAP00011902

IP Rating IP65, IP67
Low Profile Yes
Max Operating Range (m) >8 - ≤20
Defined Area Height Range (mm) >350 - ≤650
Primary Housing Material Aluminum
Safety Level Type 4
Effective Aperture Angle Type 4 Per IEC 61496-2
Connector Type M12 Pigtail (Yellow)
Defined Area Height (mm) 630
Dimensions WxD (mm) 36 x 45
Overall Length (mm) 634
External Monitoring Device 1 Channel
Fixed Blanking Yes
Housing Finish Black Anodized
Number of Pins (Receiver/Emitter) 5
