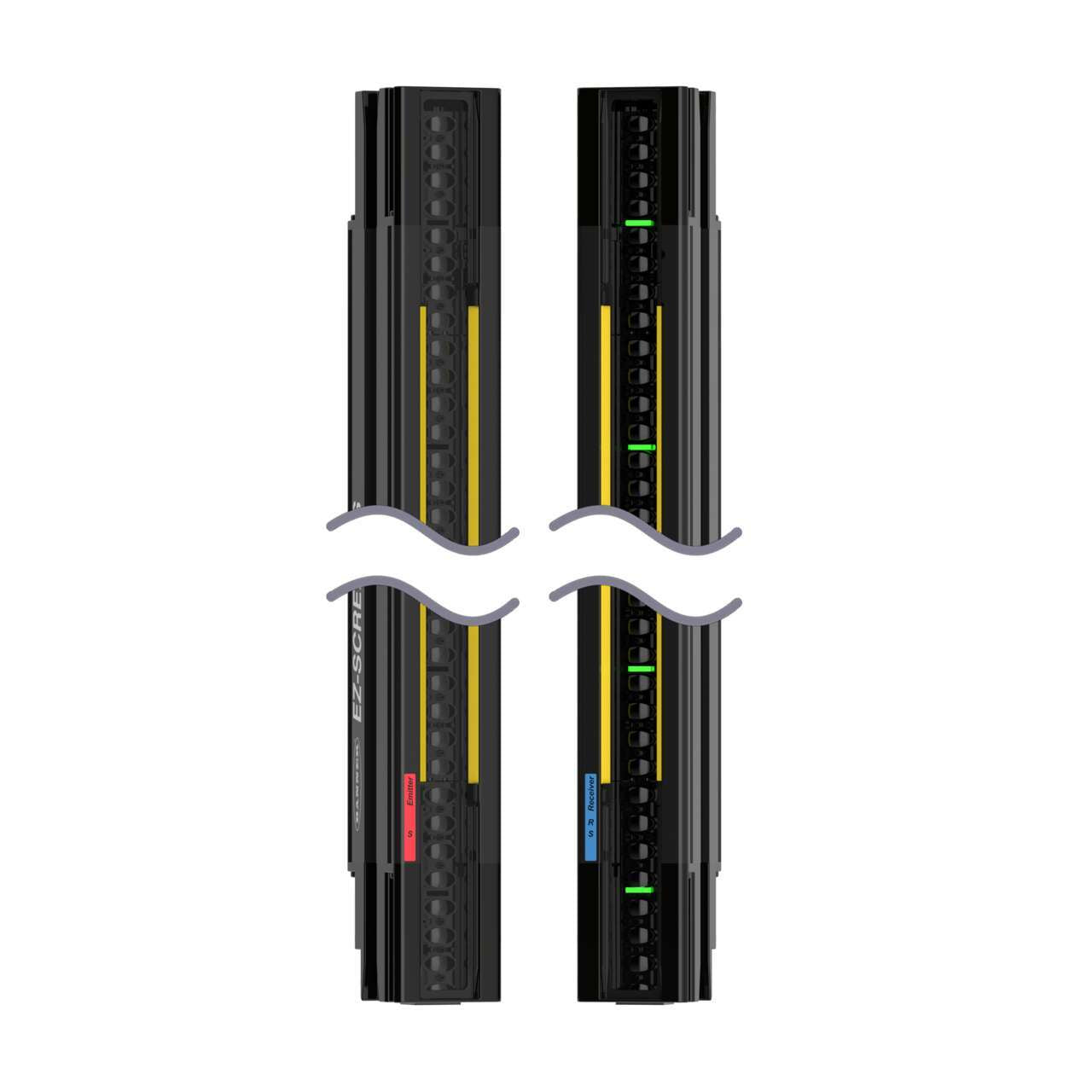

BANNER SLLP40-910P88Safety Light Curtains

Write a review
Rs. 0.00

IP Rating IP65, IP67
Low Profile Yes
Max Operating Range (m) >8 - ≤20
Defined Area Height Range (mm) >650 - ≤950
Primary Housing Material Aluminum
Safety Level Type 4
Effective Aperture Angle Type 4 Per IEC 61496-2
Connector Type M12 Pigtail (Yellow)
Defined Area Height (mm) 910
Dimensions WxD (mm) 36 x 45
Overall Length (mm) 914
External Monitoring Device 1 Channel
Fixed Blanking No
Housing Finish Black Anodized
Number of Pins (Receiver/Emitter) 8
Operating Distance (m) 0.1 - 12
Operating Voltage 24 V dc ± 15%
Operating Temperature -20 to +55 °C; RH 95%
PL Rating Ple
Recovery Time 42 / 142
Resolution (mm) 40
Reduced Resolution No
Response Time 10.3
SIL Rating SIL3; CL3
Electrical Safety Class III
Scan Code Selectable
