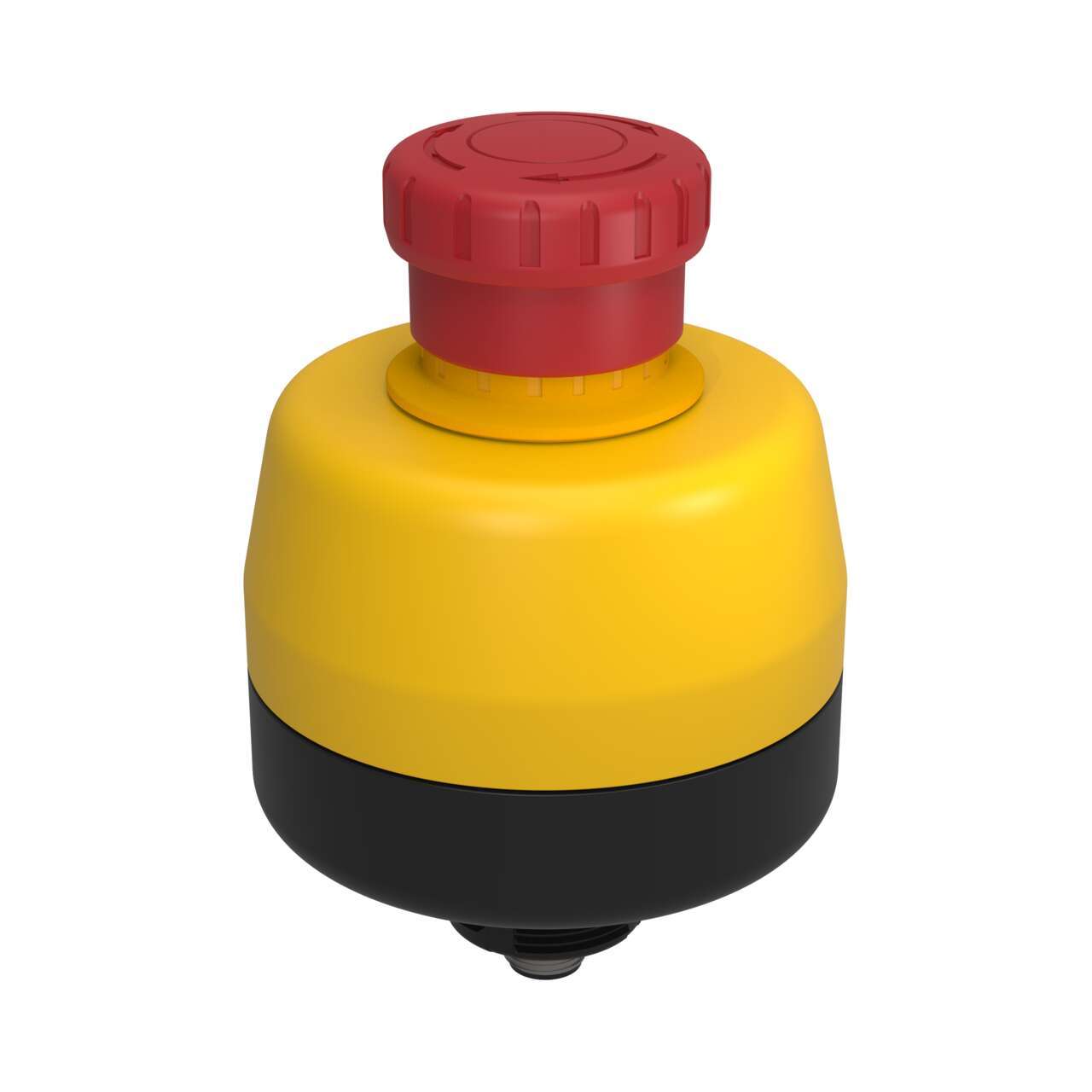

BANNER SSA-EB1P-22ECQ8Mount Emergency Stop Buttons

PAP00012375

Button Shroud: No
IP Rating: IP65
Connection Type: M12
Housing Style: Base
Device Type: Push Button
Primary Housing Material: Polycarbonate
In-Series Diagnostics: No
Actuation: Twist/Pull-to-Release
Connection: Integral QD
Feature: Quick Disconnect: Yes
Contact Quantity: 2 NC, 2 NO
Mounting Thread/Style: 30 mm
EPLAN Original Sent Date: 10/18/2024
Dimensions (HxWxD mm): 120 x 80
Min Operating Temperature (°C): -25
Max Operating Temperature (°C): 55
EPLAN Status: Published
Button Diameter (mm): 40
Actuator/Button Material: Thermoplastic
Contact Rating: 2 A @ 24 V DC
