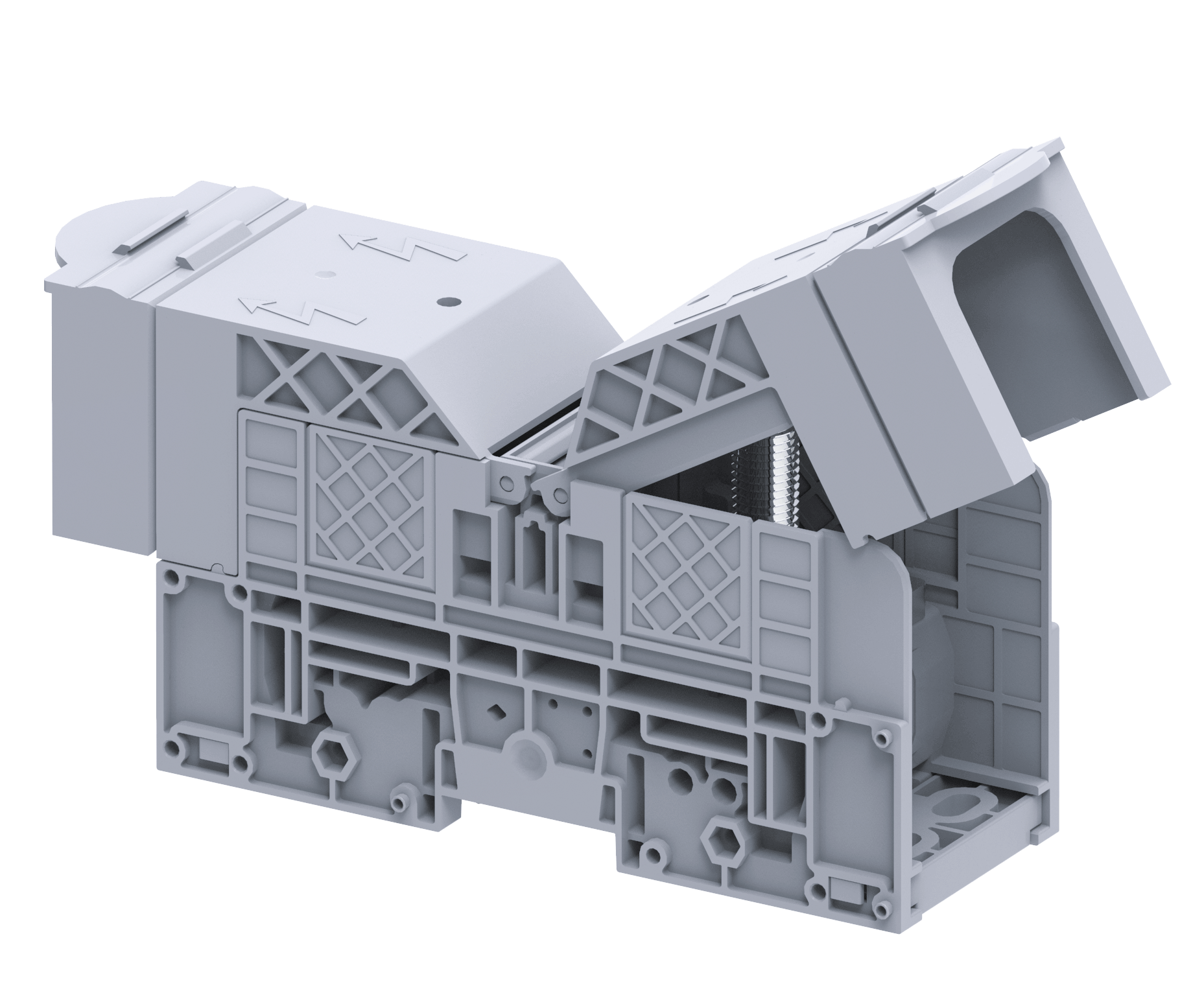

connectwell 240 sq.mm Stud Type Power Terminal Blocks with Hinged Protective Cover

Name: Industrial Mega Mart
Address: 42/36. Site4 Sahibabad, Uttar Pradesh, 201010, IN
Telephone: +91 9818376733
Price range: Price on Request

SKU: SAT00000183

Rated Voltage

1000VAC/1500 VDC

Rated Current

415 A

Tightening Torque

14 Nm

Housing Material

Polyamide

standard colour

Grey

Product Function

Power Terminal Block

Wire Entry Orientation

Side Entry

Mounting Possibility

DIN 32/DIN 35/DIN 35-15 Rail

stud size

M12

Operated by

Nut driver

Rated surge voltage

8 KV

Pollution Degree

Hurry Up! Only 50 Left in Stock!

Share on Facebook
Share on twitter
Share on email
Share on whatsapp

Price on Request

Please fill out the form below and we will get back to you regarding this product.

Description

PTB series Terminal Blocks are preferred for application using wires of large cross section. The Wire is crimped to a ring / fork lug and is screwed on to the flat current bar of the Terminal Block. Specially designed Mounting Feet holds the Terminal Block rigidly on to the Mounting Rail.Two Lugs of the rated cross section can be connected to the Terminal Block, without sacrificing the safety of the Terminal Block. The Terminal Blocks comes with hinged protective cover ( shroud ) that makes the Terminal Block shock proof (finger safe) and has marker recess to accept marking tag.
