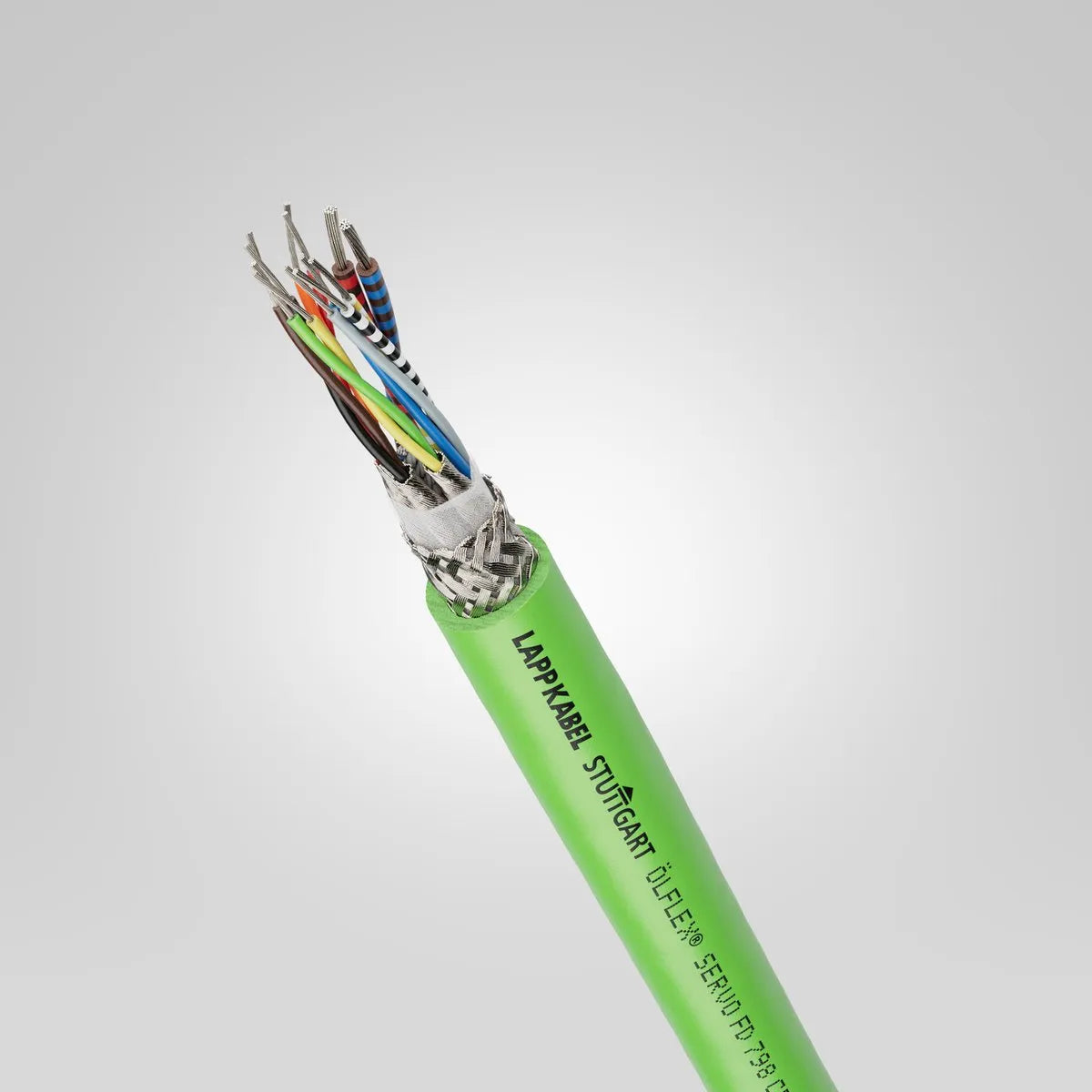

LAPP ÖLFLEX® SERVO FD 798 CP (2x2x0,18)

PRA000036120

Brand ÖLFLEX®
Product Type Encoder Cable
Weight 47 kg/km
Nominal Voltage 30 V AC rms / DC according to IEC
Signal Pair Nominal Voltage 30 V AC rms / DC according to IEC
Rated Voltage 30 V AC rms / DC according to UL AWM
30 V AC rms / DC according to CSA AWM
Test Voltage Conductor/Conductor 1.5 kV
Test Voltage Core/Screening 0.75 kV
Current Rating According to VDE 0891-1
Copper Index 24.000 kg/km
Copper Index (lb) 161.273 lb/10,000 ft
Performance Class Extended-Line
