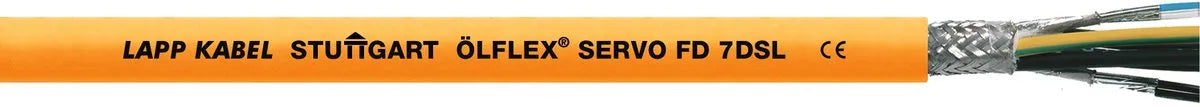

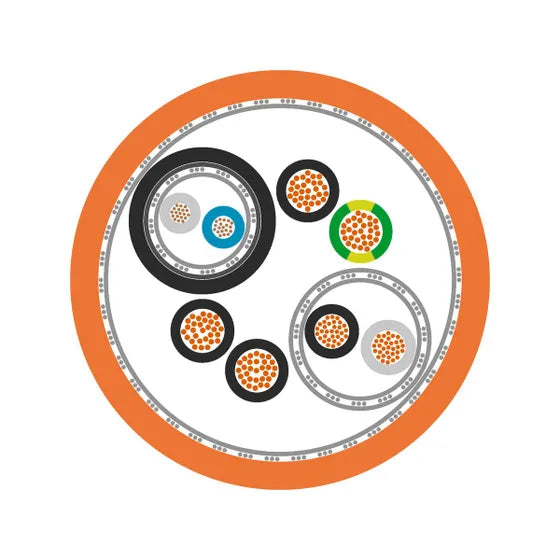

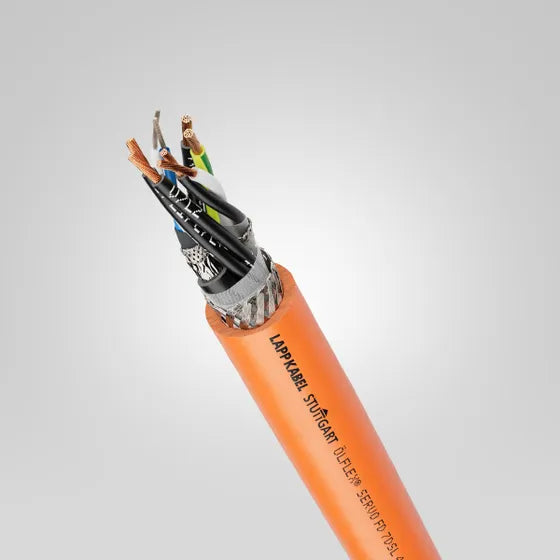

LAPP ÖLFLEX® SERVO FD 7DSL 4G0,5+(2x0,34)+(2x

PRA000036126

Brand ÖLFLEX®
Product Type Servo Cable
Weight 132 kg/km
Copper Index 73,000 kg/km
Copper Index (lb) 490,540 lb/10,000 ft
Performance Class Extended-Line
Nominal Voltage U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Power Cores) U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Control Cores) U0/U: 0,6/1 kV AC rms according to IEC
Signal Pair Nominal Voltage 300 V AC rms / DC according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
Test Voltage 4 kV
Power Core Test Voltage 4 kV
Test Voltage (Control Cores) 4 kV
Current Rating According To VDE 0891-1
Nominal Characteristic Impedance 110 Ω
Maximum Transmission Length 100 m
