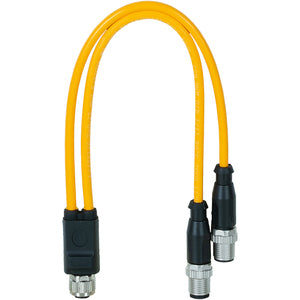

PILZ Adapter/ML/M12-5SMX/M12-5SMX/M12-8SFX/XX

SUA00003874

Technical Data
Connector type 15-pin M12 male connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2Straight
Coding of M12 connector 2A coded
Connector type 38-pin M12 female connector
Shape of connector type 3Straight
Coding of M12 connector 3A coded
Material threaded ring conn 1GD-Zn, Ni
Material threaded ring conn 2GD-Zn, Ni
Material threaded ring conn 3GD-Zn, Ni
Housing material connector 3TPU, UL 94 HB
Contact surfaces material 1Ni b / Au 0.2 gal.
Contact surfaces material 2Ni b / Au 0.2 gal.
Contact surfaces material 3Ni b / Au 0.2 gal.
Seal materialFPM
Material of pinsCuZn
Material of socketsCuZn
Cable material K1Cu
Cable material K2Cu
Insulation material cable K1PP (9Y)
Insulation material cable K2PP (9Y)
Cable type K14Li9Y11Y
Cable type K2
Length cable0.2 m
Colour cable insulation 1Signal yellow RAL1003
Colour cable insulation 2Signal yellow RAL1003
Housing colourBlack
Material of cable insulation 1PUR
Material of cable insulation 2PUR
Trailing capability of cable 1Yes
Trailing capability of cable 2Yes
Bend radius (when laying) K17.5 x Ø
Bend radius (when laying) K2
Max. outside diameter cable K14.85 mm
Conductor cross section0.25 mm²
Cable cross section AWG K124
Cable cross section AWG K224
Stranding K15 cores
Stranding K25 cores
Shielding K1No
Shielding K2No
Number of conductors5
Approvals for cable K1UL AWM-Style 20549
Approvals for cable K2UL AWM-Style 20549
Approvals for connector 1UL 94 HB
Approvals for connector 2UL 94 HB
Approvals for connector 3UL 94 HB
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL FT2
Torque interlocking screw0.6 Nm
Net weight45 g
Gross weight49 g
