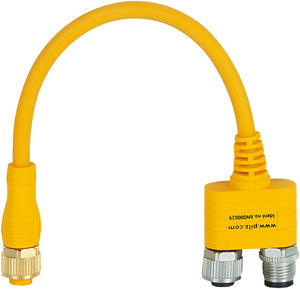

PILZ Adapter/SL/M12-8SMX/M12-8SFX/M12-8SFX/PT

Write a review
Rs. 0.00

Technical Data
Connector type 18-pin M12 male connector
Shape of connector type 1Straight
Coding of M12 connector 1A coded
Connector type 28-pin M12 female connector
Shape of connector type 2Straight
Coding of M12 connector 2A coded
Connector type 38-pin M12 female connector
Shape of connector type 3Straight
Coding of M12 connector 3A coded
Material threaded ring connector 1GD-Zn, Ni
Material threaded ring connector 2GD-Zn, Ni
Material threaded ring connector 3GD-Zn, Ni
Housing material connector 3TPU
Contact surfaces material 1Ni b / Au 0.2 gal.
Contact surfaces material 2Ni b / Au 0.2 gal.
Contact surfaces material 3Ni b / Au 0.2 gal.
Seal materialFKM
Material of pinsCuZn
Material of socketsCuZn
Cable material K1Cu
Length cable0.15 m
Colour cable insulation 1Signal yellow RAL1003
Housing colourSignal yellow RAL1003
Material of cable insulation 1PUR
Trailing capability of cable 1No
Bend radius (when laying) K15 x Ƙ
Max. outside diameter cable K16.35 mm
Conductor cross section0.25 mmĀ²
Cable cross section AWG K124
Shielding K1No
Number of conductors8
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL
Approvals for connector 2UL
Approvals for connector 3UL
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL VW1
Torque interlocking screw0.4 Nm
Net weight41 g
Gross weight44 g
