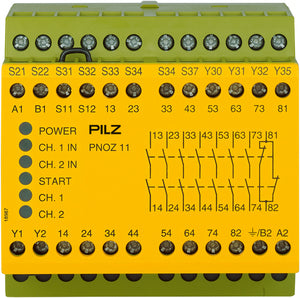

PILZ BPNOZ 11 110-120VAC 24VDC 7n/o 1n/c

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)110 - 120 V
Type of Supply Voltage U1AC
Power Consumption AC9 VA
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semiconductor Outputs2
Tolerance Ext. Volt. DC S/C-20 %/+20 %
Utilisation Cat. to EN 60947-1DC-12
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.8 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.8 A
Utilisation Cat. AC15/DC13 Stand.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 Āµm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 Ā°C
Humidity Rating93 % r.h. at 40 Ā°C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Cond. C/S AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension90 mm
Depth Dimension121 mm
Net Weight640 g
Gross Weight650 g
