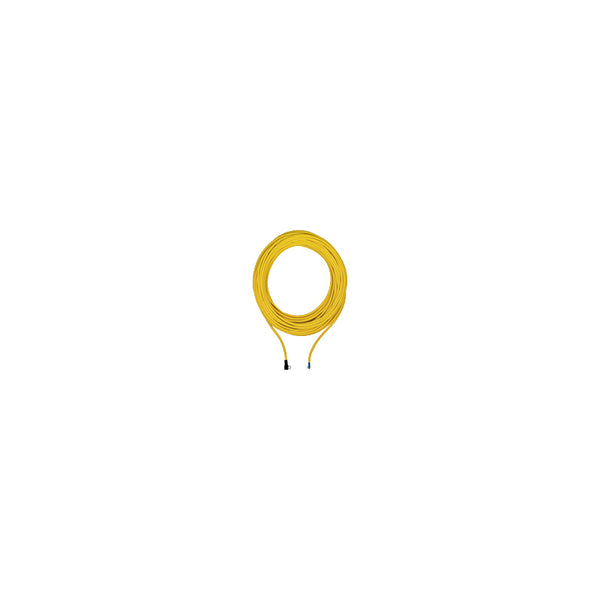

PILZ Cable/CA/M12-5AFX/M12-5AM/A/010/XXXX/SH

Write a review
Rs. 0.00

Technical Data
Connector type 15-pin M12 female connector
Shape of connector type 1Angled
Coding of M12 connector 1A coded
Connector type 25-pin M12 male connector
Shape of connector type 2Angled
Coding of M12 connector 2A coded
Matl threaded ring conn 1CuZn nickel-plated
Matl threaded ring conn 2CuZn nickel-plated
Contact surfaces material 1CuZn, Ni b/Au 0.2 gal.
Contact surfaces material 2CuZn, Ni b/Au 0.2 gal.
Seal materialFKM
Material of pinsCuZn
Material of socketsCuZn
Cable materialCu
Length cable10 m
Material shield surfaceCu
Colour cable insulationSignal yellow RAL1003
Housing colourBlack
Material of cable insulationPUR
Trailing capability of cableNo
Bend radius (when laying)12 x Ƙ
Max. outside diameter cable7.7 mm
Insulation material data cableFM-PE
Insulation material supply cableHD-PE
Diameter data line AWG24
Cross section data cable0.22 mmĀ²
Cross section UB cable0.50 mmĀ²
Cross section shield cable0.50 mmĀ²
Stranding(1x2xAWG24+Al)+(1x2xAWG21+Al)
ShieldingYes
Type of shieldingWire mesh
Number of conductors5
Approvals for cableCSA AWM I/II A/B, UL AWM-Style 20233
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL FT2, UL 20233
Torque interlocking screw0.4 Nm
Net weight758 g
Gross weight768 g
