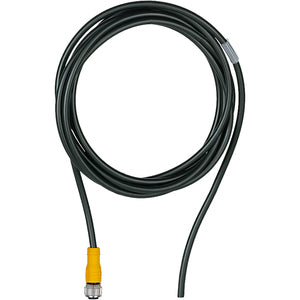

PILZ Cable/FC/XXX-XXXX/M12-5SFX/A/0,5/0Q34/BK

Write a review
Rs. 0.00

Technical Data
Connector type 15-pin M12 female connector
Shape of connector type 1straight
Coding of M12 connector 1A coded
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1Au
Seal materialFKM
Material of socketsCuZn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1LiF9Y11Y
Length cable0.5 m
Colour cable insulation 1Black
Housing colourYellow, similar to RAL 1004
Material of cable insulation 1PUR
Trailing capability of cable 1yes
Bend radius (when laying) K18 x Ƙ
Max. outside diameter cable K15.5 mm
Conductor cross section0.34 mmĀ²
Cable cross section AWG K122
Stranding K15 cores round filler
Shielding K1no
Number of conductors5
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL94 V-2
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL 20233, DIN EN 60332-1-2, FT2
Torque interlocking screw0.4 Nm
Net weight29 g
Gross weight32 g
