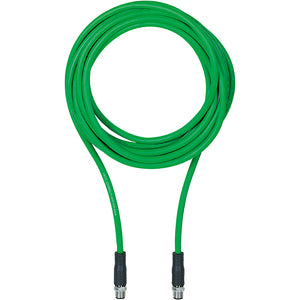

PILZ Cable/PN/M12-4SMX/M12-4SMX/D/020/Q324/GN

Write a review
Rs. 0.00

Technical Data
Connector type 14-pin M12 male connector
Shape of connector type 1straight
Coding of M12 connector 1
Connector type 24-pin M12 male connector
Shape of connector type 2straight
Coding of M12 connector 2
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1CuZn, Ni b/Au 0.2 gal.
Material of pinsCuZn
Cable material K1Cu
Insulation material cable K1FEP (RoHS)
Cable type K1S/FTP
Length cable20 m
Material shield surface K1CuZn
Category of cable K1Cat5e
Colour cable insulation 1Green, RAL6018
Housing colourBlack
Material of cable insulation 1PUR
Trailing capability of cable 1no
Bend radius (when laying) K112 x Ƙ
Max. outside diameter cable K17.4 mm
Diameter data line AWG K122
Stranding K1twisted pair (2x2xAWG22)
Shielding K1yes
Type of shielding K1Wire mesh
Number of conductors4
Approvals for cable K1UL AWM-Style 21923
VerifiedANSI/TIA-568-C.2
Halogen-freeno
Oil resistanceresistant
Flame resistanceUL FT2
Torque interlocking screw0.4 Nm
Net weight1430 g
Gross weight1440 g
