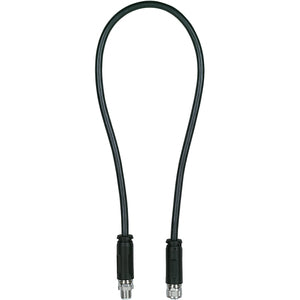

PILZ Cable/PW/M12-5SMX/M12-5SFX/L/0,5/1Q50/BK

Write a review
Rs. 0.00

Technical Data
Connector type 15-pin M12 male connector
Shape of connector type 1straight
Coding of M12 connector 1
Connector type 25-pin M12 female connector
Shape of connector type 2straight
Coding of M12 connector 2
Matl threaded ring conn 1
Matl threaded ring conn 2
Contact surfaces material 1Ni b / Au 0.2 gal.
Contact surfaces material 2Ni b / Au 0.2 gal.
Seal materialFPM
Material of pinsCuNi
Material of socketsCuNi
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1Li9Y11Y
Length cable0.5 m
Colour cable insulation 1Jet black RAL 9005
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ƙ
Max. outside diameter cable K18 mm
Conductor cross section1.5 mmĀ²
Stranding K15 cores round filler
Shielding K1no
Number of conductors5
Approvals for cable K1UL AWM-Style 20549
Approvals for connector 1UL 94 HB
Approvals for connector 2UL 94 HB
Halogen-freeyes
Halogen-free to standardDIN VDE 0472-815
Oil resistanceresistant
Oil resistance to standardDIN EN 60811-2-1
Flame resistancecULus 20549
Torque interlocking screw0.6 Nm
Net weight123 g
Gross weight129 g
