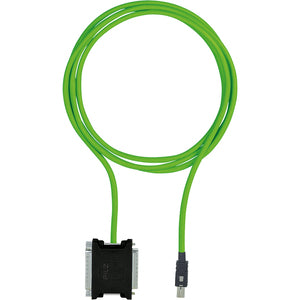

PILZ MM A MINI-IO CAB01B 2.5m

SUA00002704

Technical Data
Environmental Data
Ambient temperature0 - 60 °C
Condensation permitted?Not permitted
Protection type, mounting
Protection type, housing
Mechanical Data
Connector type 125-pin D-Sub male connector
Shape of connector type 1straight
Connector type 225-pin D-Sub female connector
Shape of connector type 2straight
Connector type 38-pin Mini-IO male connector
Shape of connector type 3straight
Fixing screwsUNC 4-40
Housing material connector 3PBT
Contact surfaces material 1Au
Contact surfaces material 2Au
Contact surfaces material 3Au
Material of pinsCu alloy
Material of socketsCu alloy
Length cable2.5 m
Tolerance of cable length K1+/- 0.15 m
Colour cable insulation 1Green, similar to RAL6018
Housing colourBlack RAL 9005
Material of cable insulation 1PUR
Trailing capability of cable 1yes
Bend radius (when laying) K18 x Ø
Max. outside diameter cable K16 mm
Conductor cross section0.14 mm²
Cable cross section AWG K126
Shielding K1yes
Number of conductors8
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL94 V-0
Approvals for connector 2UL94 V-0
Approvals for connector 3UL94 V-0
Housing materialTPE-SEBS UL 94 HB
Height dimension38 mm
Width dimension54.5 mm
Depth dimension16 mm
Net weight134 g
Gross weight145 g
