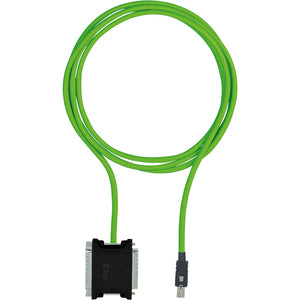

PILZ MM A MINI-IO CAB03B 2.5m

SUA00002685

Technical Data
Environmental Data
Ambient Temperature0 - 60 °C
Condensation Permitted?Not permitted
Mechanical Data
Connector Type 115-pin D-Sub male connector
Shape of Connector Type 1Straight
Connector Type 215-pin D-Sub female connector
Shape of Connector Type 2Straight
Connector Type 38-pin Mini-IO male connector
Shape of Connector Type 3Straight
Fixing ScrewsUNC 4-40
Housing Material Connector 3PBT
Contact Surfaces Material 1Gold (Au)
Contact Surfaces Material 2Gold (Au)
Contact Surfaces Material 3Gold (Au)
Material of PinsCopper alloy (Cu alloy)
Material of SocketsCopper alloy (Cu alloy)
Length of Cable2.5 m
Tolerance of Cable Length K1+/- 0.15 m
Colour of Cable Insulation 1Green (similar to RAL6018)
Housing ColourBlack (RAL 9005)
Material of Cable Insulation 1Polyurethane (PUR)
Trailing Capability of Cable 1Yes
Bend Radius (When Laying) K18 x Ø
Max. Outside Diameter of Cable K16 mm
Conductor Cross Section0.14 mm²
Cable Cross Section AWG K126
Shielding K1Yes
Number of Conductors8
Approvals for Cable K1UL AWM-Style 20233
Approvals for Connector 1UL94 V-0
Approvals for Connector 2UL94 V-0
Approvals for Connector 3UL94 V-0
Housing MaterialTPE-SEBS UL 94 HB
Dimensions & Weight
Height Dimension38 mm
Width Dimension40.8 mm
Depth Dimension16 mm
Net Weight128 g
Gross Weight168 g
