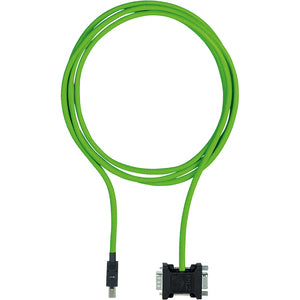

PILZ MM A MINI-IO CAB03B R 2.5m

Write a review
Rs. 0.00

Technical Data
Environmental Data
Ambient Temperature0 - 60 Ā°C
Condensation Permitted?Not permitted
Mechanical Data
Connector Type 115-pin D-Sub male connector
Shape of Connector Type 1Straight
Connector Type 215-pin D-Sub female connector
Shape of Connector Type 2Straight
Connector Type 38-pin Mini-IO male connector
Shape of Connector Type 3Straight
Fixing ScrewsUNC 4-40
Housing Material Connector 3PBT
Contact Surfaces Material 1Gold (Au)
Contact Surfaces Material 2Gold (Au)
Contact Surfaces Material 3Gold (Au)
Material of PinsCu Alloy
Material of SocketsCu Alloy
Length of Cable2.5 m
Tolerance of Cable Length+/- 0.15 m
Colour of Cable Insulation 1Green, similar to RAL6018
Housing ColourBlack (RAL 9005)
Material of Cable Insulation 1Polyurethane (PUR)
Trailing Capability of Cable 1Yes
Bend Radius (When Laying) K18 x Ƙ
Max. Outside Diameter of Cable K16 mm
Conductor Cross Section0.14 mmĀ²
Cable Cross Section (AWG K1)26
Shielding K1Yes
Number of Conductors8
Approvals for Cable K1UL AWM-Style 20233
Approvals for Connector 1UL94 V-0
Approvals for Connector 2UL94 V-0
Approvals for Connector 3UL94 V-0
Housing MaterialTPE-SEBS UL 94 HB
Dimensions & Weight
Height Dimension38 mm
Width Dimension40.8 mm
Depth Dimension16 mm
Net Weight128 g
Gross Weight168 g
