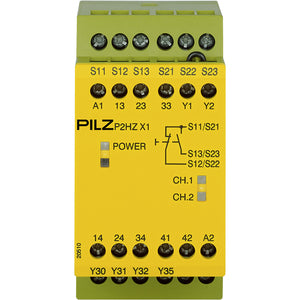

PILZ P2HZ X1 24VDC 3n/o 1n/c

SUA00002446

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC2.5 W
Max. Device Circuit Breaker
Max. Conductor Cross Section
Type of Two-Hand Device to
Type of Two-Hand DeviceIII C
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semiconductor Outputs2
Tolerance Ext. Volt. DC S/C-15 %/+10 %
Utilisation Cat. to EN 60947-1DC-12
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.5 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.5 A
Utilisation Cat. AC15/DC13 Sta.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.2.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G.P.
Safety Contacts: Pilot DutyC300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-25 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Conductor Cross Section (AWG)24 - 10 AWG
Height Dimension87 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight280 g
Gross Weight290 g
