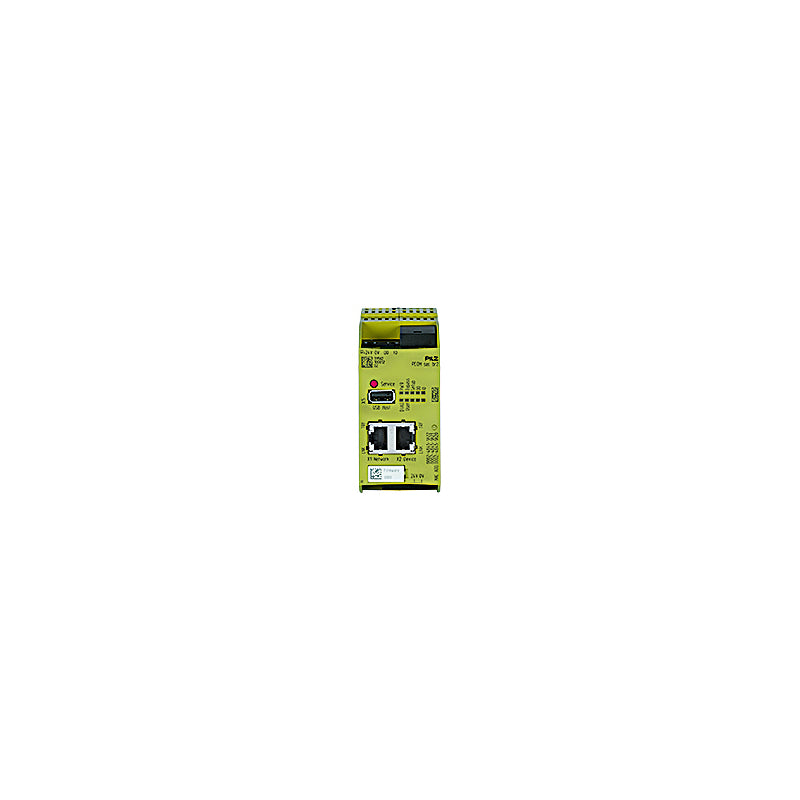

PILZ PCOM sec br2

Write a review
Rs. 0.00

Technical Data
Electrical Data
Purpose of U1Module supply
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC5.5 W
Purpose of U2Periphery supply
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2-30 %/+25 %
Inputs
Number of Digital Inputs1
DC Voltage at Input24 V DC
Input Type to EN 61131-23
Semiconductor Outputs
Number of Semiconductor Outputs1
Tolerance Ext. Volt. DC S/C
Utilisation Cat. to EN 60947-1DC-12
USB Interface
Number of USB Host Interfaces1
Ethernet Interface
Ethernet IP Address (Factory Set)192.168.222.1
Connector Type (Ethernet Interface)RJ45
Ethernet Transmission Rate10 MBit/s, 100 MBit/s
CANopen Interface
Number of Ethernet Interfaces2
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 Ā°C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability Standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity Rating93 % r.h. at 40 Ā°C
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to Standard
  • EN 61131-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-6-4
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard15g
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Potential Separation
Potential Isolation 1 BetweenPeriphery and module supply
Type of Potential Isolation 1Basic insulation
Mechanical Data
Mounting PositionVertical
DIN-Rail Dimensions35 x 7.5 EN 50022
Housing Material Lower SectionPC
Housing Material Front PlatePC
Connection TerminalSpring-loaded terminal, Screw terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension96 mm
Width Dimension45 mm
Depth Dimension111.5 mm
Net Weight170 g
Gross Weight180 g
