Zoom

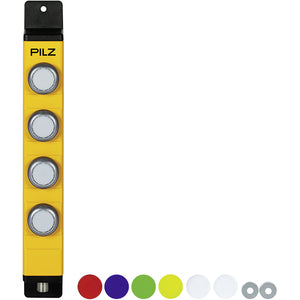

PILZ PIT gb LLLL

SUA00003545

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption (DC)12 W
Min. Contact Current1 mA
Push Button
Number of Pushbuttons4
Number of Pushbuttons N/O4
Switch Cap. Pushbutton to StandardEN 60947-5-1
Contact Material PushbuttonAg
Environmental Data
Ambient Temperature-20 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Vibration StandardEN 60947-5-2
Acc. Shock Standard30g
Clearance & Creepage DistanceEN 60947-1
Overvoltage CategoryIII
Pollution Degree Clear & Creep3
Protection Type, HousingUL Enclosure Type, Type 1
Mechanical Data
Mounting PositionAny
Connection TypeM12, 12-pin Male
Housing MaterialZn
Height Dimension293 mm
Width Dimension40 mm
Depth Dimension40 mm
Net Weight800 g
Gross Weight1200 g
