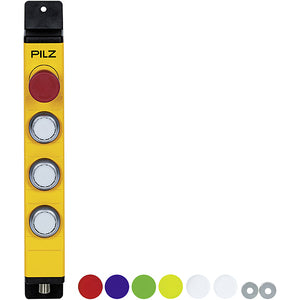

PILZ PIT gb LLME

SUA00003549

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC12 W
Min. Contact Current1 mA
Emergency Stop
Number of E-STOP N/C2
Release Type Emergency StopTurn release
Switch Cap. E-STOP to StandardEN 60947-5-1
Contact Material E-STOPAg
Push Button
Number of Pushbuttons2
Number of Pushbutton N/O2
Switch Cap. Pushbutton to StandardEN 60947-5-1
Contact Material PushbuttonAg
Environmental Data
Ambient Temperature-20 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93% r.h. at 40 °C
Vibration to StandardEN 60947-5-2
Acc. Shock to Standard30g
Clearance & Creepage Distance toEN 60947-1
Overvoltage CategoryIII
Pollution Degree Clear & Creep3
Protection Type, Housing
UL Enclosure TypeType 1
Mechanical Data
Mounting PositionAny
Connection TypeM12, 12-pin male
Housing MaterialZn
Height Dimension293 mm
Width Dimension40 mm
Depth Dimension40 mm
Net Weight800 g
Gross Weight1200 g
