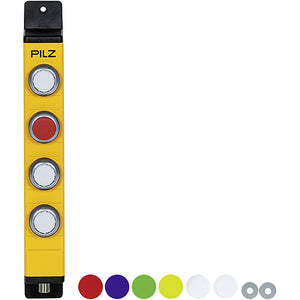

PILZ PIT gb LLUL

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC12 W
Min. Contact Current1 mA
Push Button
Number of Pushbuttons2
Number of Pushbutton N/O3
Switch Cap Pushbutton to StandardEN 60947-5-1
Contact Material PushbuttonAg
Push Button with Cover (Red)
Switch Cap Pushbutton with Cover (Red) to StandardEN 60947-5-1
Contact Material Pushbutton with Red PlateAg
Environmental Data
Ambient Temperature-20 - 60 Ā°C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 Ā°C
Vibration to StandardEN 60947-5-2
Acceleration Shock to Standard30g
Clearance & Creepage DistanceEN 60947-1
Overvoltage CategoryIII
Pollution Degree Clearance & Creepage3
Protection Type, HousingUL Enclosure Type, Type 1
Mechanical Data
Mounting PositionAny
Connection TypeM12, 12-pin Male
Housing MaterialZn
Height Dimension293 mm
Width Dimension40 mm
Depth Dimension40 mm
Net Weight800 g
Gross Weight1200 g

Out of stock
Add compare Delete compare Add wishlist Delete wishlist

Jan 05 - Jan 09

Hurry Up! Only 1000 Left in Stock!

SUA00003543
