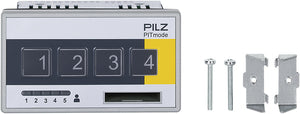

PILZ PIT m3.2p

SUA00003468

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Inputs
Number of Inputs3
Signal Level at Input at 0-3 - +5 VDC
DC Voltage at Input24 V DC
Galv. Isolation InputNo
Semiconductor Outputs
Galv. Isolation of S/C OutputsNo
S/C Output Short Circuit ProofYes
Environmental Data
Climatic Suitability to ...DIN IEC 60068-2-3
Ambient Temperature-20 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating95 % r. h. at 40 °C
EMC to Standard ...EN 60947-5-1
Vibration to Standard ...EN 60068-2-6
Clearance & Creepage Distance toEN 60664-1
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type, MountingUL
Protection Type, HousingUL
Terminal Protection TypeUL
Times
Time Buttons OM1 .. OM450 ms ... 5 s
Time Button OM1 Service5 s ... 10 s
Mechanical Data
Mounting PositionAny
Max. Cable Length1000 m
Housing Material Lower SectionST + 10µ Zn
Housing Material Front PlateABS
Connection TerminalScrew Terminal Plug-In
Spring-Loaded Terminal, Plugin
Flex. Cond. C/S AWG Info28 - 16 AWG
Height Dimension55 mm
Width Dimension98 mm
Depth Dimension43 mm
Net Weight140 g
Gross Weight260 g
Transponder
Transponder Energy SupplyPassive (Battery-Free)
Operating Frequency125 kHz
