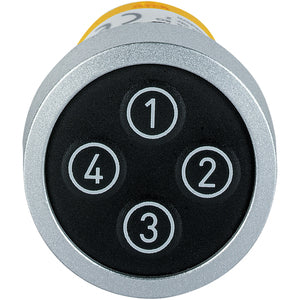

PILZ PIT oe 4S

SUA00003477

  • EN 60068-2-78
Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC0.17 W
Inputs
Signal Level at Input at 0< 5 V
Environmental Data
Climatic Suitability
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-14
Ambient Temperature Standard
  • EN 60068-2-2
  • EN 60068-2-1
Ambient Temperature-20 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability Standard
Humidity Rating93 % r.h. at 40 °C
Perm. Operating Height ASL2000 m
EMC to Standard
EMC StandardEN 61131-2 (Zone B)
Vibration to Standard
Vibration StandardEN 60068-2-6
Acc. Shock Standard150 m/s²
Clearance & Creepage Distance
Clearance & Creepage Distance StandardEN 61131-2
Protection Type
Overvoltage CategoryII
Pollution Degree Clear. & Creep2
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Mechanical Data
Mounting PositionAny
Connection TerminalSpring-loaded terminal
Height Dimension32 mm
Width Dimension32 mm
Depth Dimension40 mm
Net Weight17 g
Gross Weight25 g
