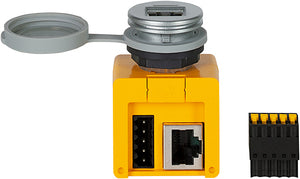

PILZ PIT oe ETH

SUA00003592

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC0.48 W
Inputs
Number of Inputs2
DC Voltage at Input24 V
Input Type to EN 61131-23
Galv. Isolation InputNo
Ethernet Interface
Connector Type EthernetRJ45
Ethernet Transmission Rate10/100 Mbit/s
CANopen Interface
Number of Ethernet Interfaces2
Environmental Data
Climatic SuitabilityEN 60068-2-2, EN 60068-2-1
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-20 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?No
Perm. Operating Height ASL2000 m
EMC to StandardEN 61131-2 (Zone B)
Vibration to StandardEN 60068-2-6
Shock to Standard15g
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clearance & Creepage2
Protection Type StandardEN 60529
Protection Type, MountingNot Provided
Protection Type, HousingNot Provided
Mechanical Data
Mounting PositionAny
Max. Cable Length30 m
Connection TerminalSpring-loaded terminal, plugin
Terminal StylePlug-in
Height Dimension40 mm
Width Dimension30 mm
Depth Dimension59.2 mm
Net Weight42 g
Gross Weight60 g
