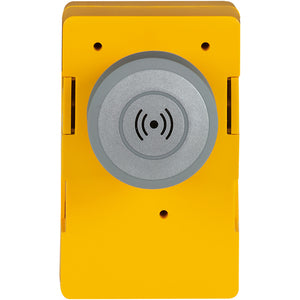

PILZ PITreader card unit

SUA00003588

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Type of Power Supply for U1SELV/PELV
Power Consumption DC4 W
Device Circuit Breaker U14 A, Autom 24 VDC, Char. B/C
Inputs
Galv. Isolation InputNo
Semiconductor Outputs
Number of Semiconductor Outputs1
Galv. Isolation of S/C OutputsNo
S/C Output Short Circuit ProofYes
Ethernet Interface
Ethernet IP Address (Factory Set)192.168.0.12
Connector Type Ethernet InterfaceRJ45
Ethernet Transmission Rate10/100 Mbit/s
CANopen Interface
Number of Ethernet Interfaces1
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-30 - 55 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r. h. at 40 °C
Perm. Operating Height ASL2000 m
EMC to StandardEN 301489-1 V2.1.1
Vibration to StandardEN 60068-2-6
Shock to Standard15g
Protection Type StandardEN 60529
Protection Type, MountingNot Provided
Protection Type, HousingNot Provided
Mechanical Data
Mounting PositionAny
Housing Material (Lower Section)PC
Housing Material (Front Plate)PC
Connection TerminalSpring-loaded terminal, plugin
Terminal StylePlug-in
Height Dimension49 mm
Width Dimension72 mm
Depth Dimension45 mm
Net Weight62 g
Gross Weight115 g
Transponder
Transponder Energy SupplyPassive (battery-free)
Operating Frequency13.24 - 13.88 MHz
