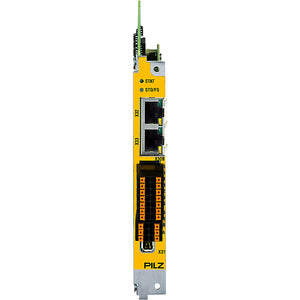

PILZ PMCprotego S3.SN 8DI 6DO EI BR

SUA00003267

Technical Data
Absolute Encoder Input
No. of inputs absolute encoder1
Supply voltage for ABS24 V DC
Signal clock output ABSDifferential signal (RS 422)
Signal data input ABSDifferential signal (RS 422)
Input Incremental Encoder
Number of incremental encoder1
Supply voltage for incremental encoder24.0 V
Phase position differential signal incremental encoder90° ±30°
Inputs
Number of digital inputs8
Signal level at input at 0-3 - +5 VDC
Semiconductor Outputs
Tolerance external voltage DC short circuit-15 %/+20 %
Short circuit output short-circuit proofYes
Semiconductor Outputs 2-Pole
Number of 2-pin SC outputs2
Environmental Data
Climatic suitability toEN 60068-2-1
Ambient temperature standardEN 60721-3-3
Ambient temperature class1K4
Ambient temperature class3K3
Ambient temperature0 - 40 °C
Storage temperature standardEN 60721-3-1
Storage temperature change20 K/h
Climatic suitability standardEN 60721-3-3
Humidity rating85 % r. h.
Humidity class3K3
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61800-3
Vibration to standardEN 60721-3-2
Clearance & creepage distance toEN 61800-5-1
Overvoltage categoryII
Protection type standardEN 60529
Mechanical Data
Mounting positionUpright
Height dimension141.9 mm
Width dimension86.7 mm
Depth dimension18.4 mm
Net weight124 g
Gross weight154 g
