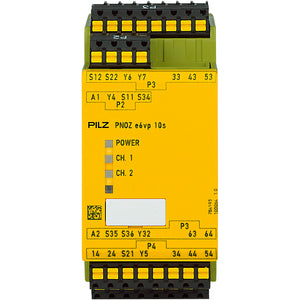

PILZ PNOZ e6vp C 24VDC 4n/o 1so 1so t

SUA00002579

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Max. Device Circuit Breaker6 A slow / 10 A quick
Semiconductor Outputs
Utilisation Category to EN 60947-1DC-12
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max. Current AC1 Safety Contact6 A
Voltage DC1 Safety Contact24 V
Max. Current DC1 Safety Contact6 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max. Current AC15 Safety Contact3 A
Voltage DC13 Safety Contact24 V
Safety Contacts (AC at UL)250 VAC G.U. (same polarity)
Safety Contacts: Pilot DutyR300, B300
Relay Contact MaterialAgCuNi
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII
Pollution Degree (Clearance & Creepage)2
Protection Type (Mounting, Housing, Terminal)Not specified
Times
Selectable Times7 s, 3 s, 5 s, 0.15 s, 1 s, 0 s, 0.5 s, 10 s, 2 s
Tolerance Tv+/-10 % + 40 ms
Repetition Accuracy3 %
Mechanical Data
Mounting PositionAny
Housing Material
Lower SectionNot specified
Front PlateABS UL 94 V0
Upper PartNot specified
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Height Dimension101 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight280 g
Gross Weight300 g
