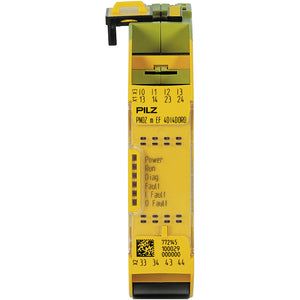

PILZ PNOZ m EF 4DI4DORD

SUA00002726

Technical Data
Electrical Data
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Permitted loads
  • Resistive
  • Inductive
Inputs
Number of digital inputs4
U input to EN 61131-2 Type 124 V DC
Potential isolation inputNo
Relay Outputs
Number of relay outputs4
Utilisation cat. AC/DC1 standardEN 60947-4-1
Voltage AC1 safety cont.250 V
Max. current AC1 safety cont.6 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.6 A
Utilisation cat. AC15/DC13 standardEN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.3 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G.U. Resistive
Pilot duty R300 to UL24 V DC
Relay contact materialAgCuNi
Additional contact details relay+ 0.2 µm Au
Potential isolation relay outputsYes
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Potential Separation
Potential isolation 1 betweenRL output and system voltage
Type of potential isolation 1Safe separation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Spring-loaded terminal
  • Screw terminal
Terminal stylePlug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension120 mm
Net weight185 g
Gross weight200 g
