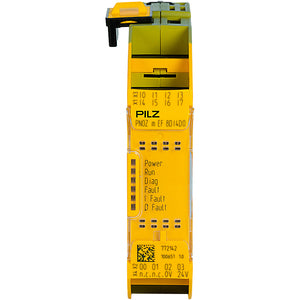

PILZ PNOZ m EF 8DI4DO

SUA00002714

Technical Data
Electrical Data
Purpose of U2Supply of SC outputs
Supply voltage 2 (V)24 V
Type of supply voltage U2DC
Tolerance of U2
Potential isolation U2Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Permitted loads
  • Resistive
  • Inductive
  • Capacitive
Inputs
Number of digital inputs8
U input to EN 61131-2 Type 124 V DC
Potential isolation inputNo
Semiconductor Outputs
Potential isolation of S/C OYes
S/C output short circuit proofYes
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Protection type, mounting
Protection type, housing
Terminal protection type
Potential Separation
Potential isolation 1 betweenSC output and system voltage
Type of potential isolation 1Basic insulation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Spring-loaded terminal
  • Screw terminal
Terminal stylePlug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension120 mm
Net weight105 g
Gross weight115 g
