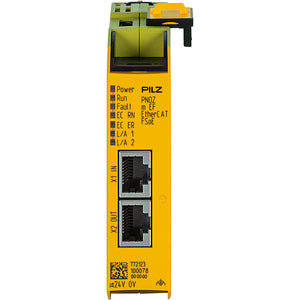

PILZ PNOZ m EF EtherCAT FSOE

SUA00002739

Technical Data
Electrical Data
Purpose of U1Module supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC3 W
Device circuit breaker U16 A, automatic, Char.B
Potential isolation U1Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Fieldbus Interface
Fieldbus device typeDevice
Selectable transmission rates100 MBit/s
Connection fieldbus2 x RJ45
Galv. isolation fieldbusYes
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Protection type standardEN 60529
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminalSpring-loaded terminal, Screw terminal
Terminal stylePlug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension115 mm
Net weight115 g
Gross weight130 g
