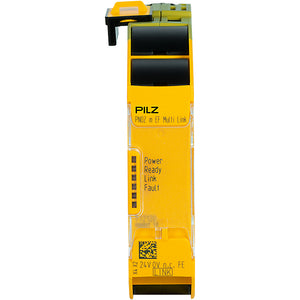

PILZ PNOZ m EF Multi Link

SUA00002719

Technical Data
Electrical Data
Purpose of U1Module supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC1 W
Device circuit breaker U1
Potential isolation U1Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Fieldbus Interface
Galv. isolation fieldbusYes
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Protection type, mounting
Protection type, housing
Terminal protection type
Potential Separation
Potential isolation 1 betweenModule and supply voltage
Type of potential isolation 1Functional insulation
Potential isolation 2 betweenModule and system voltage
Type of potential isolation 2Functional insulation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Screw terminal
  • Spring-loaded terminal
Terminal stylePlug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension120 mm
Net weight91 g
Gross weight113 g
