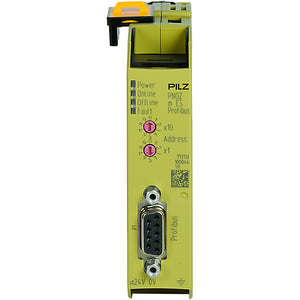

PILZ PNOZ m ES Profibus

SUA00002731

Technical Data
Electrical Data
Purpose of U1Module supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC0.9 W
Potential isolation U1Yes
Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Fieldbus Interface
Fieldbus interfacePROFIBUS-DP
Fieldbus device typeSlave DPV0
Perm. fieldbus station address0 - 99d
Range fieldbus trans. rate9.6 kBit/s - 12 MBit/s
Connection fieldbus9-pin D-Sub female connector
Galv. isolation fieldbusYes
Test voltage500 V AC
Environmental Data
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standardEN 61131-2
Vibration to standardEN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Potential Separation
Potential isolation 1 betweenFieldbus and module
Type of potential isolation 1Functional insulation
Mechanical Data
Mounting positionHorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminal
  • Screw terminal
  • Spring-loaded terminal
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension115 mm
Net weight95 g
Gross weight105 g
