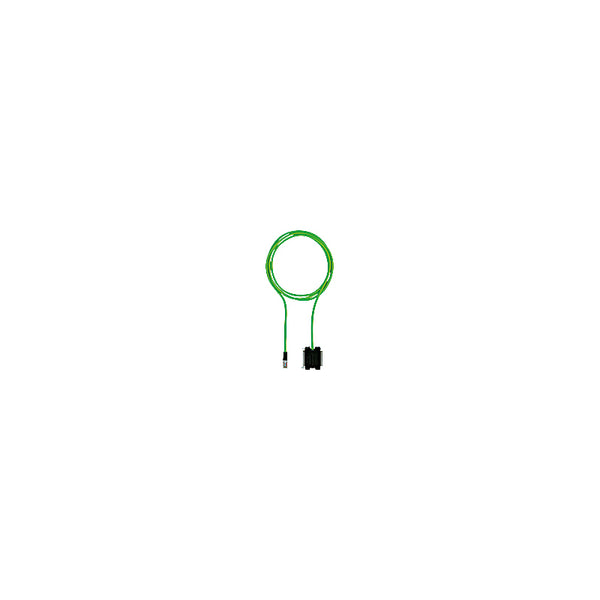

PILZ PNOZ MSI22AP ADAPTER B&R ACOPOS 2,5m

SUA00002829

Technical Data
Environmental Data
Ambient temperature0 - 60 °C
Condensation permitted?Not permitted
Mechanical Data
Connector type 115-pin D-Sub female connector
Shape of connector type 1Straight
Connector type 215-pin D-Sub male connector
Shape of connector type 2Straight
Connector type 38-pin RJ45 male connector
Shape of connector type 3Straight
Fixing screwsUNC 4-40
Housing material (connector 3)PBT
Contact surfaces material 1Au
Contact surfaces material 2Au
Contact surfaces material 3Au
Material of pinsCu alloy
Material of socketsCu alloy
Length of cable2.5 m
Tolerance of cable length (K1)+/- 0.15 m
Colour of cable insulation (1)Green, similar to RAL6018
Housing colourBlack (RAL 9005)
Material of cable insulation (1)PUR
Trailing capability of cable (1)Yes
Bend radius (when laying) (K1)8 x Ø
Max. outside diameter of cable (K1)6 mm
Conductor cross section0.14 mm²
Diameter of data line (AWG) (K1)26
Shielding (K1)Yes
Number of conductors8
Approvals for cable (K1)UL AWM-Style 20233
Approvals for connector (1)UL94 V-0
Approvals for connector (2)UL94 V-0
Approvals for connector (3)UL94 V-0
Housing materialTPE-SEBS UL 94 HB
Dimensions and Weight
Height dimension38 mm
Width dimension40.8 mm
Depth dimension16 mm
Net weight159 g
Gross weight178 g
