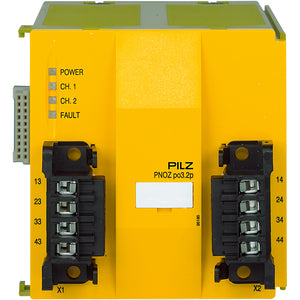

PILZ PNOZ po3.2p 4n/o

SUA00002591

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.16 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.16 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.6 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G.P.
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r. h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII
Pollution Degree (Clearance & Creepage)2
Protection Type (Mounting, Housing, Terminal)Not specified
Mechanical Data
Mounting PositionHorizontal on top hat rail
Housing MaterialUpper Part: ABS UL 94 V0
Connection TerminalScrew terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info20 - 10 AWG
Height Dimension94 mm
Width Dimension90 mm
Depth Dimension135 mm
Net Weight490 g
Gross Weight550 g
