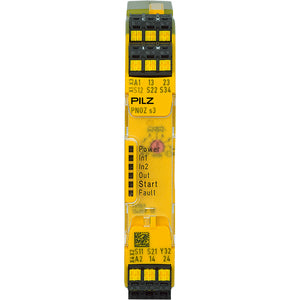

PILZ PNOZ s3 C 24VDC 2 n/o

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC2.5 W
Inputs
Number of Inputs2
Semiconductor Outputs
Number of Semicond. Outputs1
Utilisation Cat. to EN 60947-1DC-12
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.6 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.6 A
Utilisation Cat. AC15/DC13 Sta.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G.U. (same polarity)
Relay Contact MaterialAgCuNi
Addit. Contact Details Relay+ 0.2 Āµm Au
Environmental Data
Climatic Suitability to ...EN 60068-2-78
Ambient Temperature-10 - 55 Ā°C
Humidity Rating93 % r. h. at 40 Ā°C
Condensation Permitted?Not permitted
EMC to Standard ...
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to Standard ...EN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clear. & Creepage2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension100 mm
Width Dimension17.5 mm
Depth Dimension120 mm
Net Weight140 g
Gross Weight150 g
