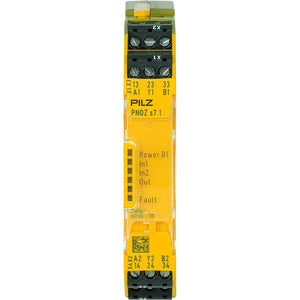

PILZ PNOZ s7.1 24VDC 3 n/o cascade

SUA00002308

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC2 W
Inputs
Number of Inputs1
Semiconductor Outputs
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max. Current AC1 Safety Contact6 A
Voltage DC1 Safety Contact24 V
Max. Current DC1 Safety Contact6 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max. Current AC15 Safety Contact5 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G.U. (same polarity)
Relay Contact MaterialAgCuNi
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93% r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distance toEN 60947-1
Overvoltage CategoryIII
Pollution Degree Clearance & Creepage2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalScrew terminal
Terminal StylePlug-in
Flexible Conductor c/s AWG Info24 - 12 AWG
Height Dimension98 mm
Width Dimension17.5 mm
Depth Dimension120 mm
Net Weight170 g
Gross Weight185 g
