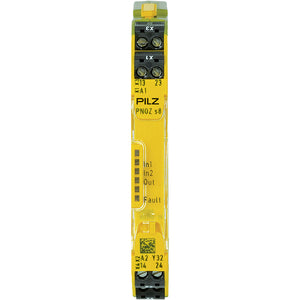

PILZ PNOZ s8 24VDC 2 n/o

SUA00002312

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC2 W
Inputs
Number of Inputs1
Semiconductor Outputs
Number of Semiconductor Outputs1
Utilisation Category to EN 60947-1DC-12
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max. Current AC1 Safety Contact3 A
Voltage DC1 Safety Contact24 V
Max. Current DC1 Safety Contact3 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max. Current AC15 Safety Contact1.5 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G. U.
Safety Contacts: Pilot Duty
  • R300
  • B300
Relay Contact MaterialAgSnO2
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93% r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distance toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree Clearance & Creepage2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material Upper PartPC
Connection TerminalScrew terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension98 mm
Width Dimension12.5 mm
Depth Dimension120 mm
Net Weight105 g
Gross Weight115 g
