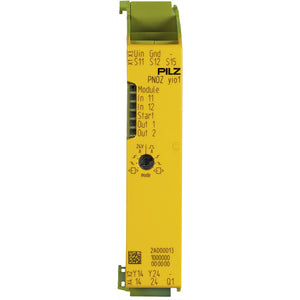

PILZ PNOZ yio1 2DI 2SO

Write a review
Rs. 0.00

Technical Data
Electrical Data
Purpose of U2Supply of SC outputs
Supply Voltage 2 (V)12 - 24 V
Type of Supply Voltage U2DC
Tolerance of U2
Potential Isolation U2No
Purpose of UINT1Module supply
Source of Internal VoltageVia head module
Voltage Type of UINT1DC
Permitted Loads
  • Resistive
  • Inductive
  • Capacitive
Inputs
Number of Digital Inputs2
U Input to EN 61131-2 Type 124 V DC
Potential Isolation InputNo
Semiconductor Outputs
Potential Isolation of S/C ONo
S/C Output Short Circuit ProofYes
Perm. Load 1-pole Output
  • Resistive
  • Inductive
  • Capacitive
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-20 - 55 Ā°C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Condensation Permitted?Not permitted
Perm. Operating Height ASL5000 m
EMC to Standard...
  • EN 60947-5-1
  • EN 61326-3-1
Vibration to Standard...EN 60068-2-6
Acc. Shock to Standard115g
Clearance & Creepage Dist. toEN 60947-5-1
Overvoltage CategoryIII
Pollution Degree Clear. & Creepage2
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Simultaneity Input Circuitāˆž
Mechanical Data
Mounting PositionAny
DIN-Rail Dimensions
Housing Material Lower SectionPC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal, Screw terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension98 mm
Width Dimension17.5 mm
Depth Dimension121 mm
Net Weight85 g
Gross Weight140 g
