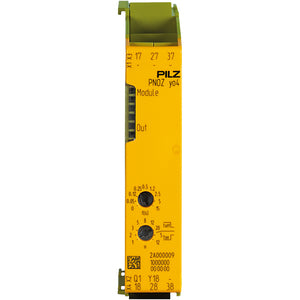

PILZ PNOZ yo4 3NO t

Write a review
Rs. 0.00

Technical Data
Electrical Data
Purpose of UINT1Module supply
Source of Internal VoltageVia head module
Voltage Type of UINT1DC
Permitted Loads
  • Resistive
  • Inductive
Inputs
U Input to EN 61131-2 Type 124 V DC
Potential Isolation InputNo
Relay Outputs
Utilisation Cat. AC/DC1 Stand.
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.6 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.6 A
Utilisation Cat. AC15/DC13 Sta.EN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL
Safety Contacts: Pilot DutyB300, R300
Pilot Duty R300 to UL24 V DC
Relay Contact MaterialAgCuNi
Addit. Contact Details Relay+ 0.2 Āµm Au
Pot. Isolation Relay OutputsYes
Environmental Data
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-20 - 55 Ā°C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Condensation Permitted?Not permitted
EMC to Standard ...
  • EN 60947-5-1
  • EN 61326-3-1
Vibration to Standard ...EN 60068-2-6
Acc. Shock to Standard115g
Clearance & Creepage Dist. toEN 60947-5-1
Overvoltage CategoryIII
Pollution Degree Clear. & Creepage2
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Tolerance Tv+/-1.5 %
Potential Separation
Potential Isolation 1 BetweenOutput and system voltage
Type of Potential Isolation 1Safe separation
Mechanical Data
Mounting PositionAny
DIN-Rail Dimensions
Housing Material Lower SectionPC
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal, Screw terminal
Terminal StylePlug-in
Flex. Cond. C/S AWG Info24 - 12 AWG
Height Dimension98 mm
Width Dimension17.5 mm
Depth Dimension121 mm
Net Weight117 g
Gross Weight175 g
