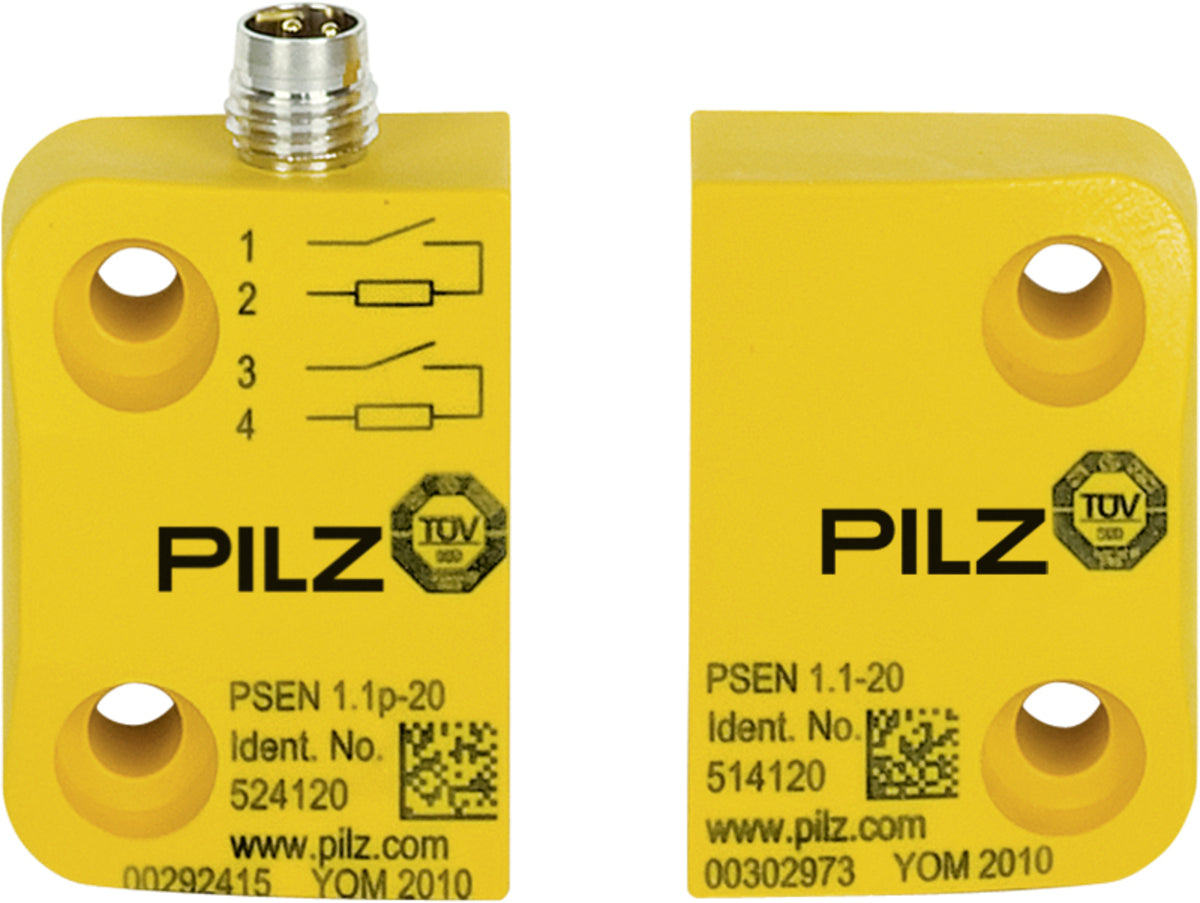

PILZ PSEN 1.1p-20/PSEN 1.1-20/8mm/ 1unit

SUA00001339

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
Ambient temperature -10 - 55 °C
Max. ambient temp. at Hmax (To be defined)
Max. ambient temp. at 2000 m +55 °C
Climatic suitability standard IEC 60068-2-30
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree clear.&creep. 3
Mechanical Data
Type 1 actuator PSEN 1.1-20
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 4-pin male
Housing material upper part PBT
Height dimension 36 mm
Width dimension 26 mm
Depth dimension 13 mm
Net weight 31 g
Gross weight 41 g
