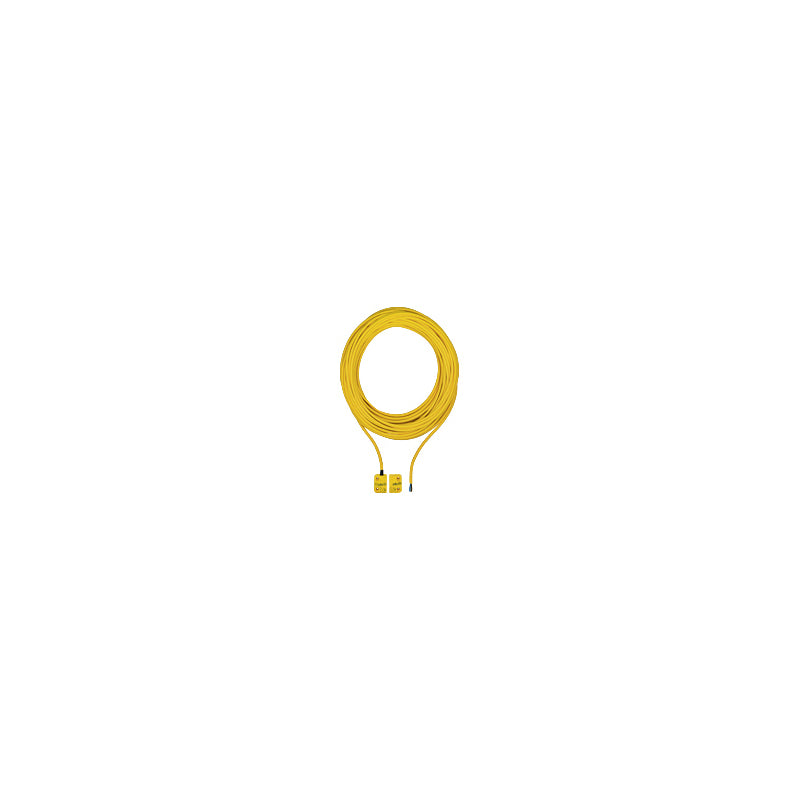

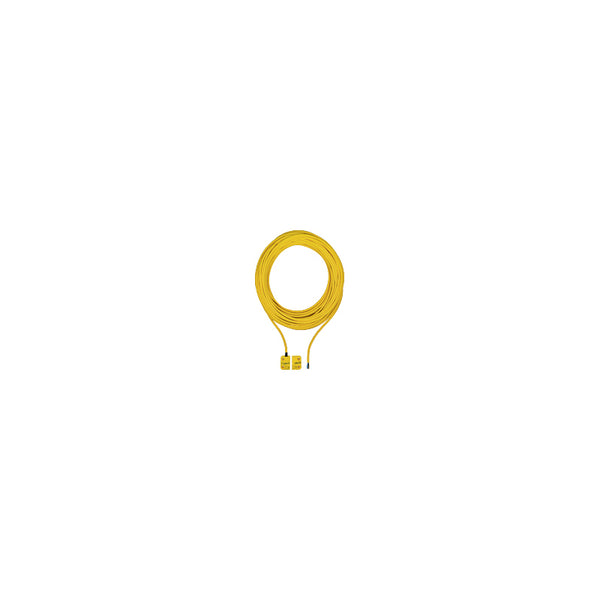

PILZ PSEN 2.1b-26/PSEN2.1-20/8mm/10m/EX/1unit

SUA00001462

Technical Data
Electrical Data
Supply voltage (V) : 24 V
Type of supply voltage U1 : DC
Switching voltage : 24 V
Environmental Data
ATEX certificate number : SEV 12 ATEX 0121 X
ATEX category gas
ATEX category dust : II 3D Ex mc tc IIIC T80°C
ATEX application area X : X: -25°C ≤ ta ≤ +55°C
Ambient temperature : -25 - 55 °C
Max. ambient temp. at 2000 m : +55 °C
Climatic suitability standard : IEC 60068-2-30
Humidity rating : 93 % r.h. at 40 °C
Perm. operating height ASL : 4000 m
EMC to standard : EN 60947-5-3
Vibration to standard : EN 60947-5-2
Acc. shock to standard : 30g
Pollution degree clear. & creep. : 3
Protection type, housing
Mechanical Data
Type 1 actuator : PSEN 2.1-20
Sensor can be flush-mounted : Yes, follow installation guide
Connection type : 10 m cable
Cable lines : LiY11Y 4 x 0.25 mm2
Housing material upper part : PC
Height dimension : 36 mm
Width dimension : 26 mm
Depth dimension : 13 mm
Net weight : 340 g
Gross weight : 360 g
