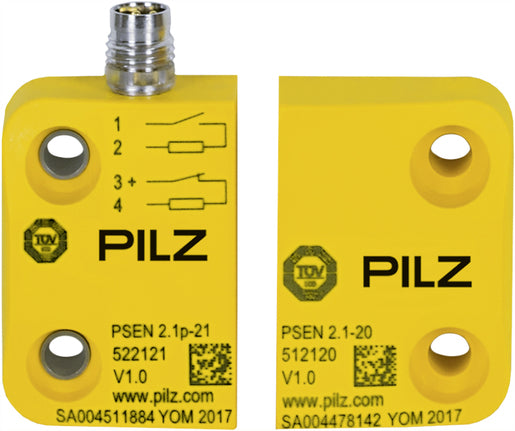

PILZ PSEN 2.1p-21/PSEN 2.1-20 /8mm/LED/1unit

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply voltage (V) : 24 V
Type of supply voltage U1 : DC
Switching voltage : 24 V
Environmental Data
Ambient temperature : -25 - 70 Ā°C
Max. ambient temp. at 2000 m : +70 Ā°C
Climatic suitability standard : IEC 60068-2-30
Humidity rating : 93 % r.h. at 40 Ā°C
Perm. operating height ASL : 4000 m
EMC to standard : EN 60947-5-3
Vibration to standard : EN 60947-5-2
Acc. shock to standard : 30g
Pollution degree clear. & creep. : 3
Protection type, housing
Mechanical Data
Type 1 actuator : PSEN 2.1-20
Sensor can be flush-mounted : Yes, follow installation guide
Connection type : M8, 4-pin male
Housing material upper part : PBT
Height dimension : 36 mm
Width dimension : 26 mm
Depth dimension : 13 mm
Net weight : 35 g
Gross weight : 62 g
